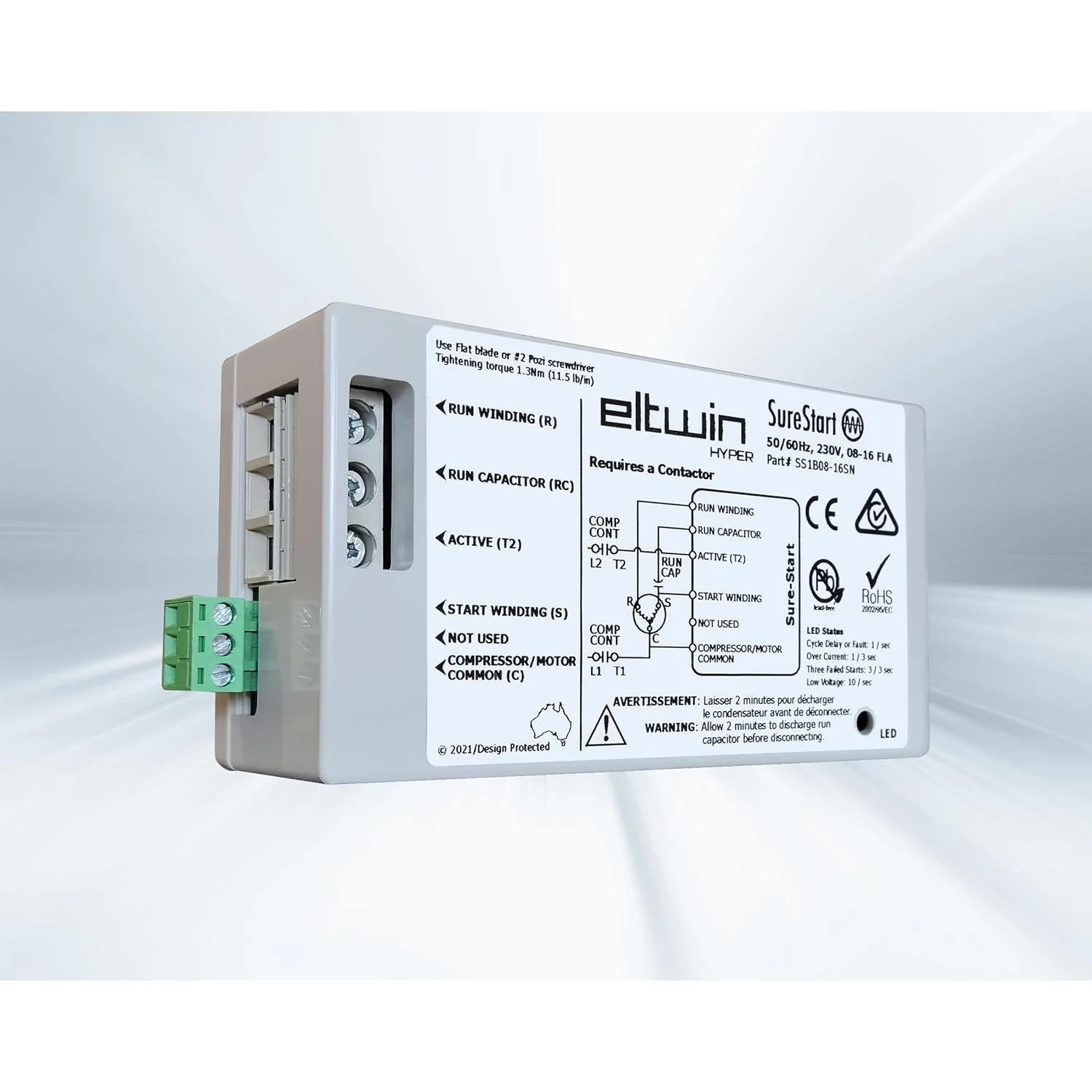

Eltwin Hyper SureStart Single Phase Soft Starter 230V (8-16 FLA) - SS1B08-16SN

Give large compressors and motors a soft start and extend their lifetime. Achieve over 60% reduction in startup current for your AC unit and pumps with our range of single phase SureStart solutions.

SureStart Series is the original single-phase soft starter specifically targeted to reduce light flicker caused by the startup of fixed speed permanent split-capacitor motors (PSC). These motors are often of the scroll compressor types which are commonly used in air-conditioning and heat pump applications.

Features

• 60-70% reduction in direct on-line (DOL) or in-rush current
• Sophisticated under voltage protection
• Motor reversal protection
• Self-adjusting up to nominal 7 hp for optimal start performance
• 50/60 Hz compatible
• ETL, CE, EMC, and RoHs compliant
• Tolerant to “dirty power” conditions
• Versions available for retrofit installations or OEM production use
• Fault LED
• Internal Current Limiting

Designed for

• Motors Between 1.5 - 7 HP
• For applications w/ 8-16 Full Load Amps (FLA)

Applications

• HVAC/R
• Irrigation/submersible pumps
• Compressors
• Marine/RV
• Solar power
• RV/trucks
• Military/government
• Backup generators

Specifications:

SKU	SS1B08-16SN
Weight (in lbs)	2.000000
Brand/Manufacturer	Eltwin
Additional Information	Power Supply & Control voltage: Auto-Start at Power Up
Electrical	208 / 230 V. 1 Phase 50Hz/60Hz
Amperage Requirement	8A - 16A max FLA range
Temperature Control Range	-4° F to 140° F
Height	2"
Width	3"
Depth	5 1/4"
Warranty	1 Year

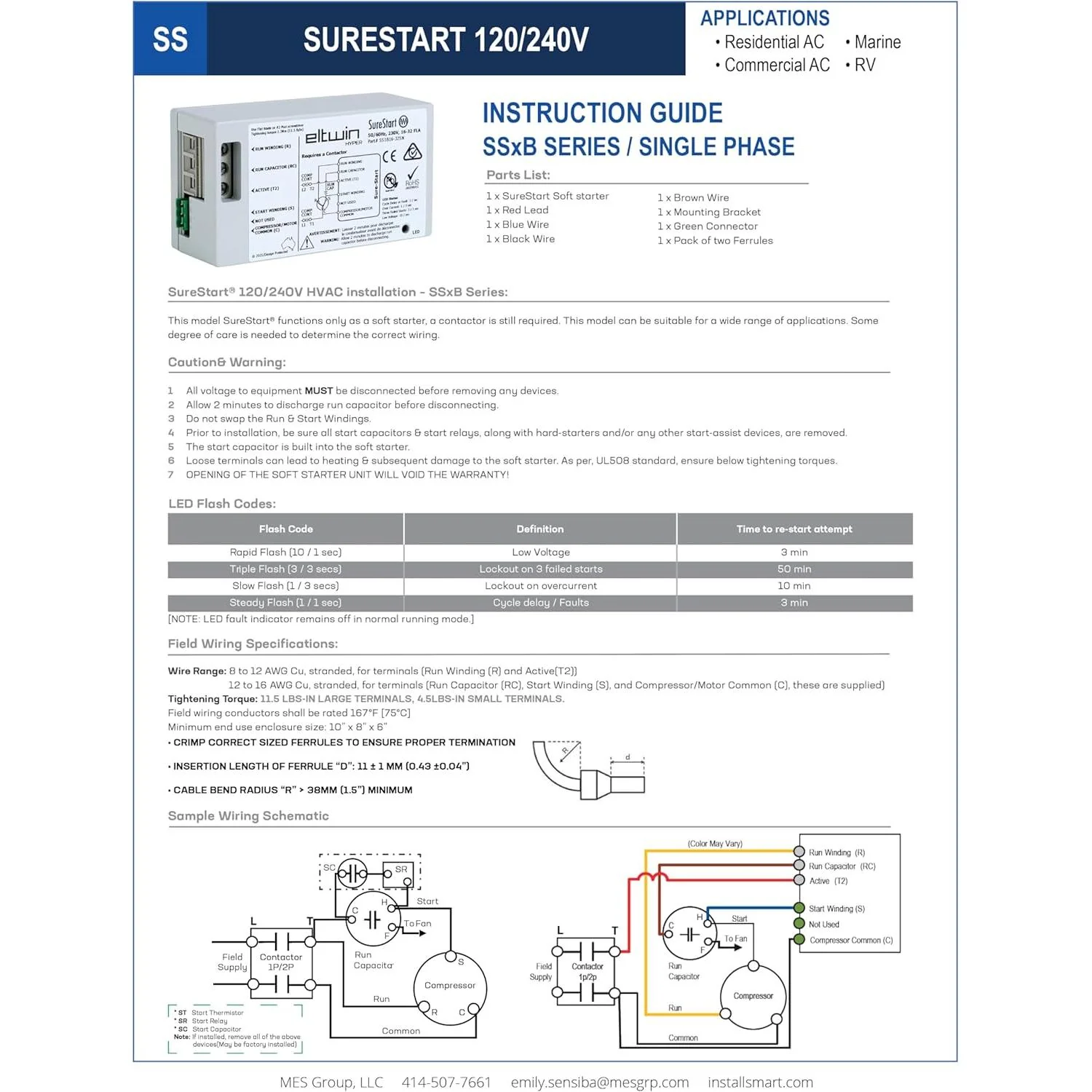

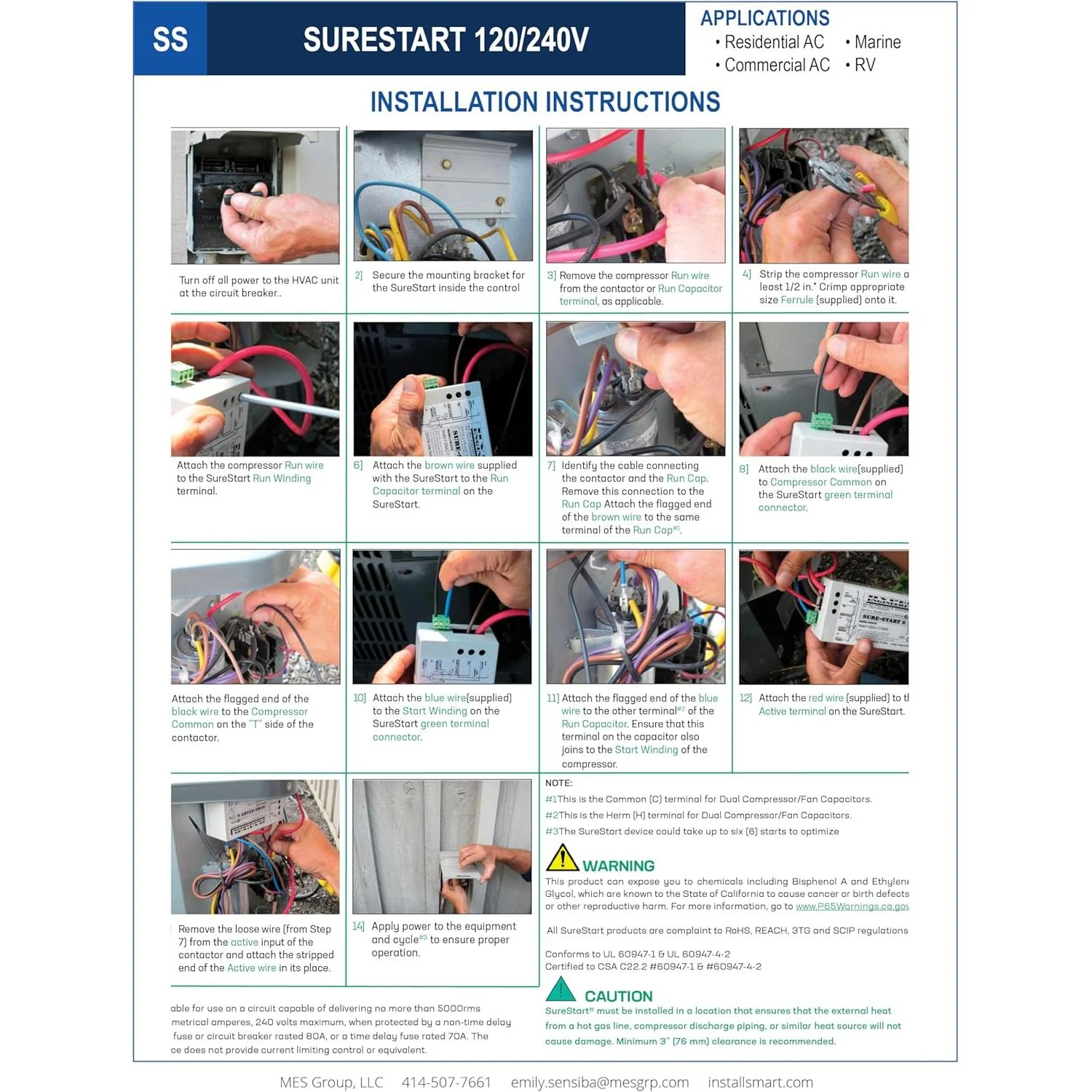

Resources	Installation Manual Product Catalog
Safety Information	PROPOSITION 65 WARNING
