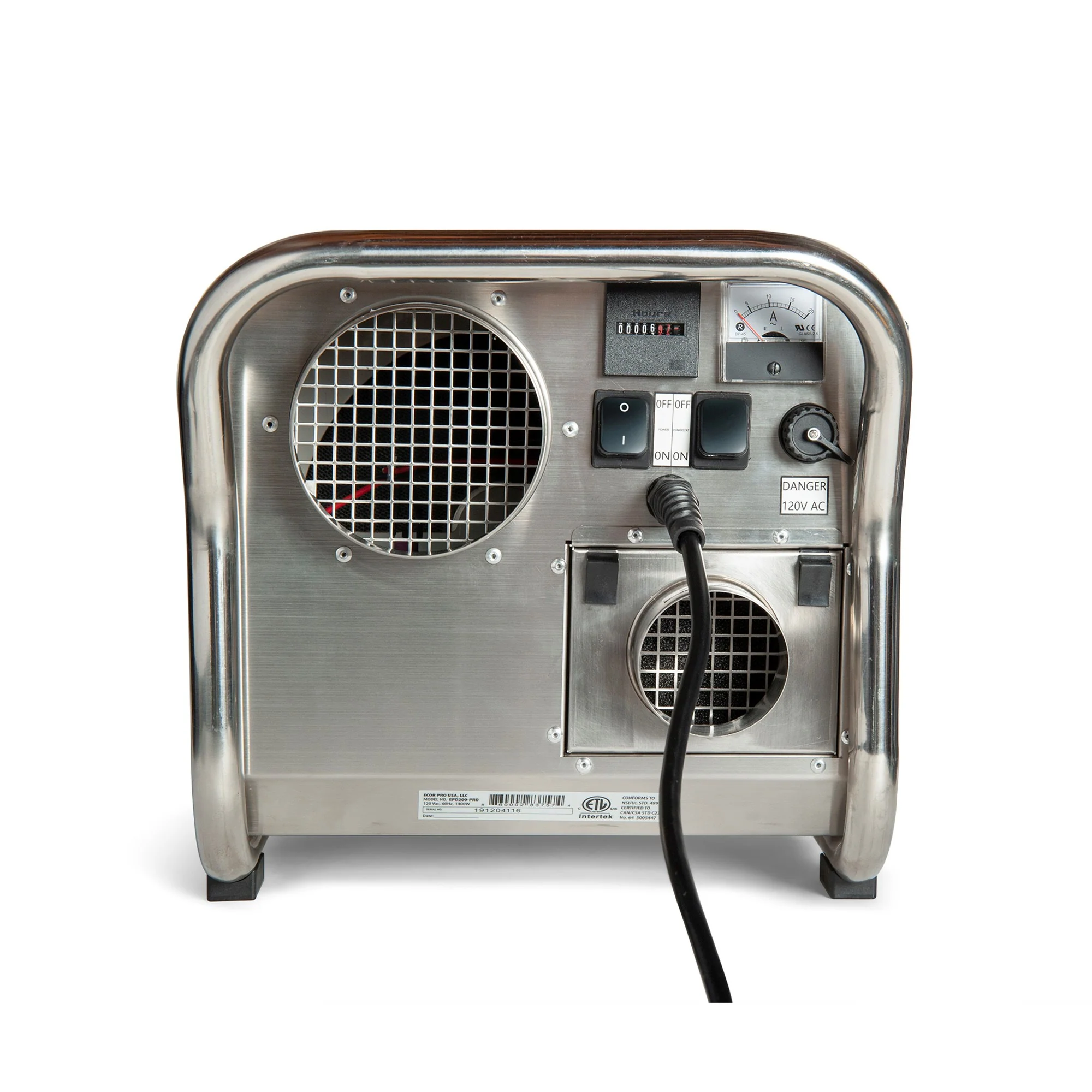

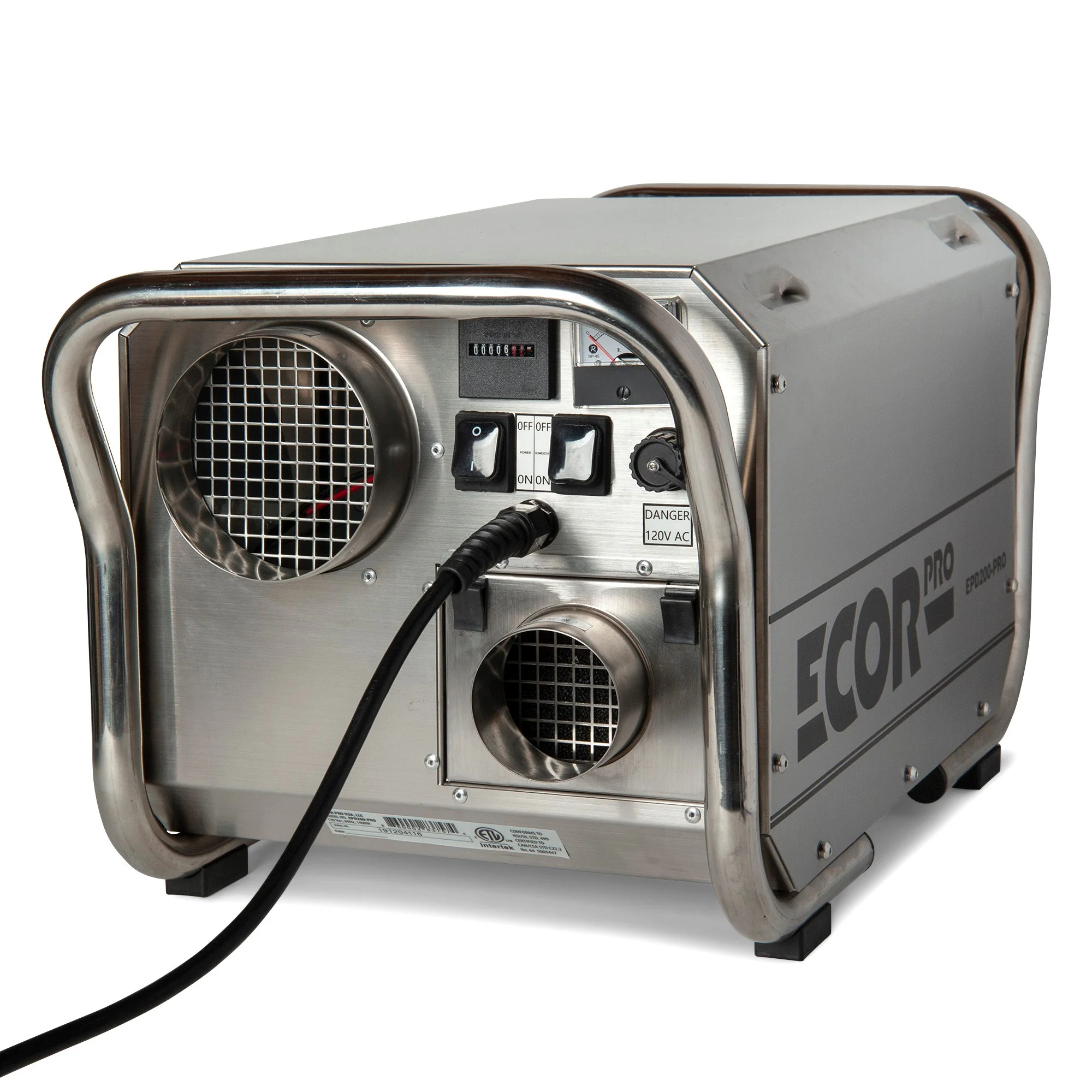

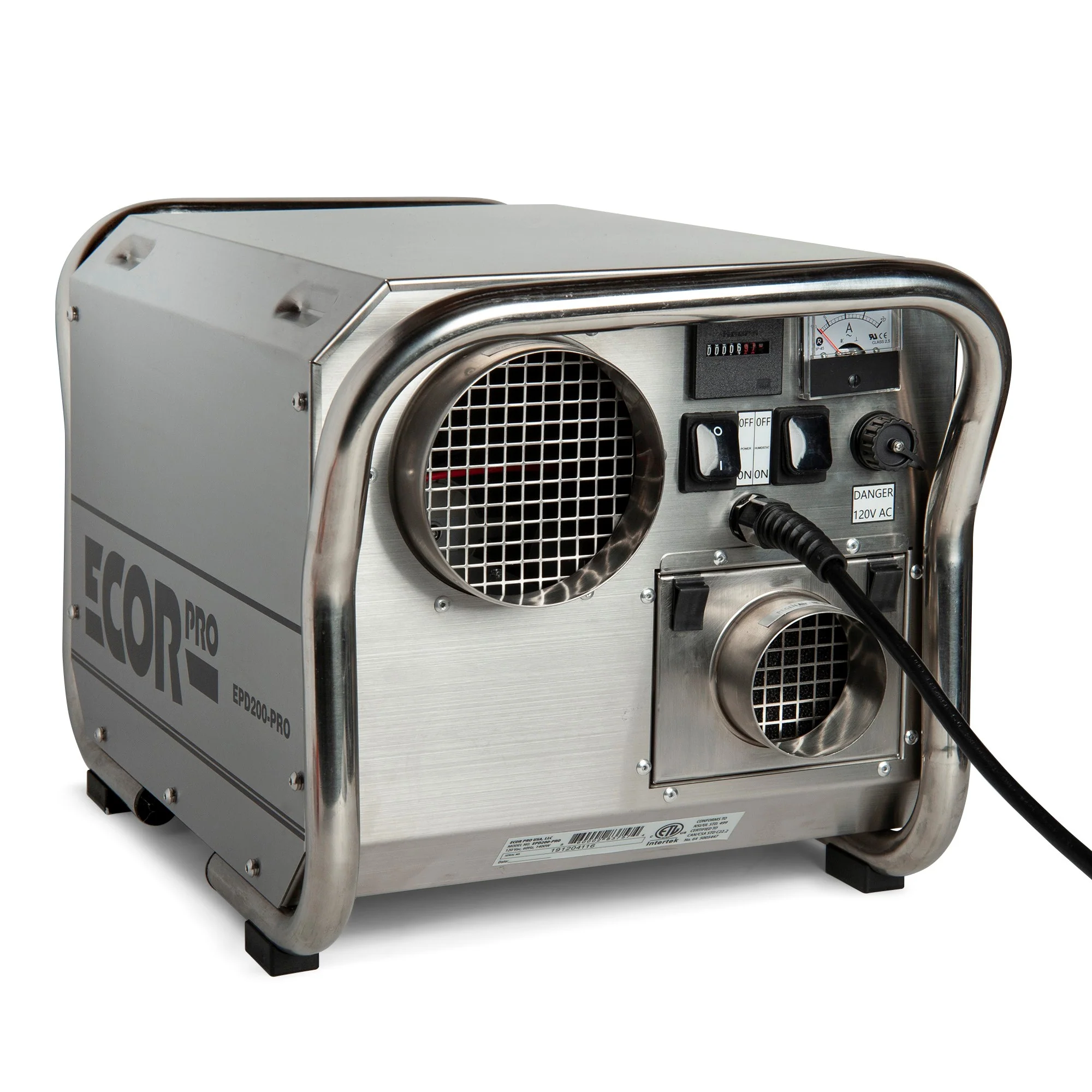

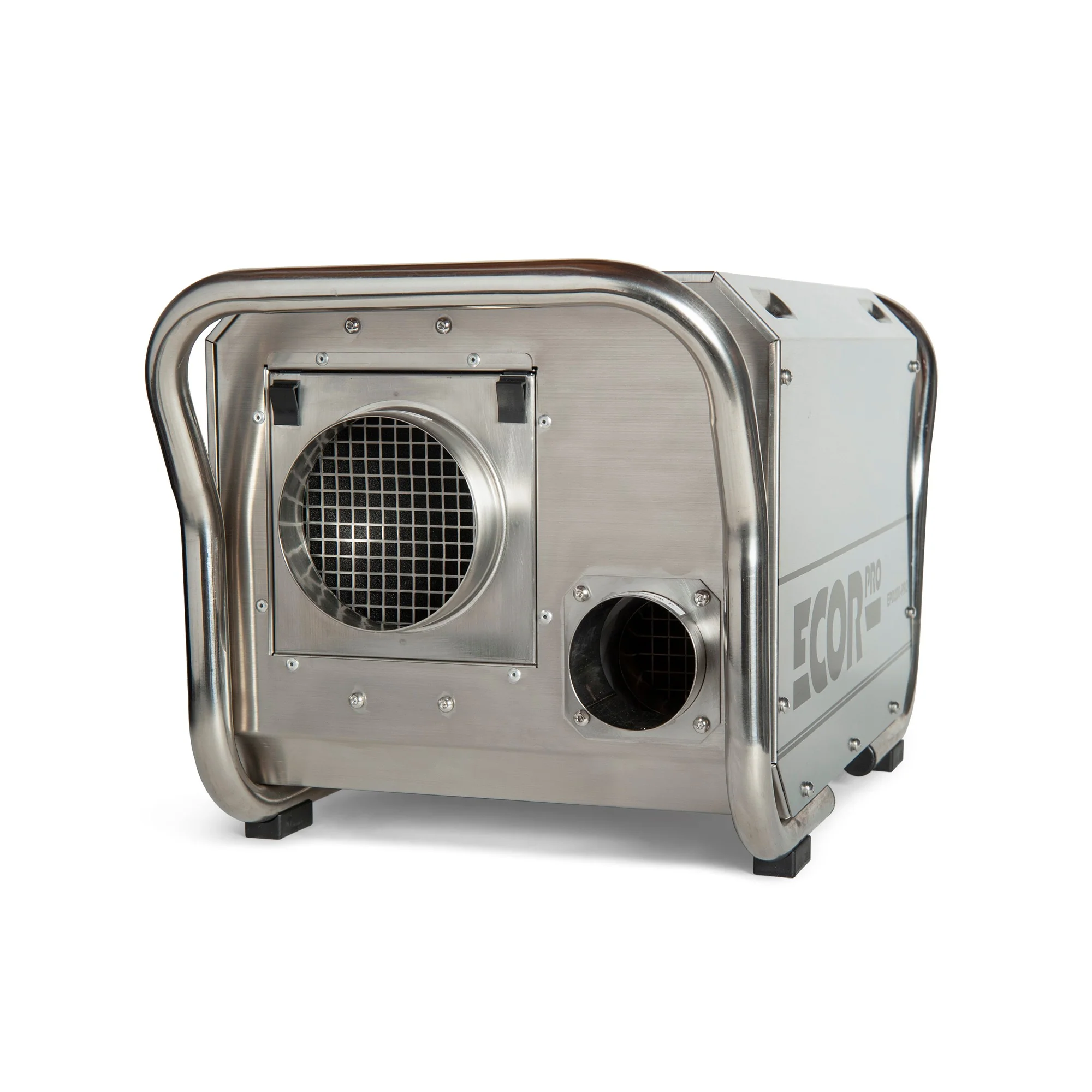

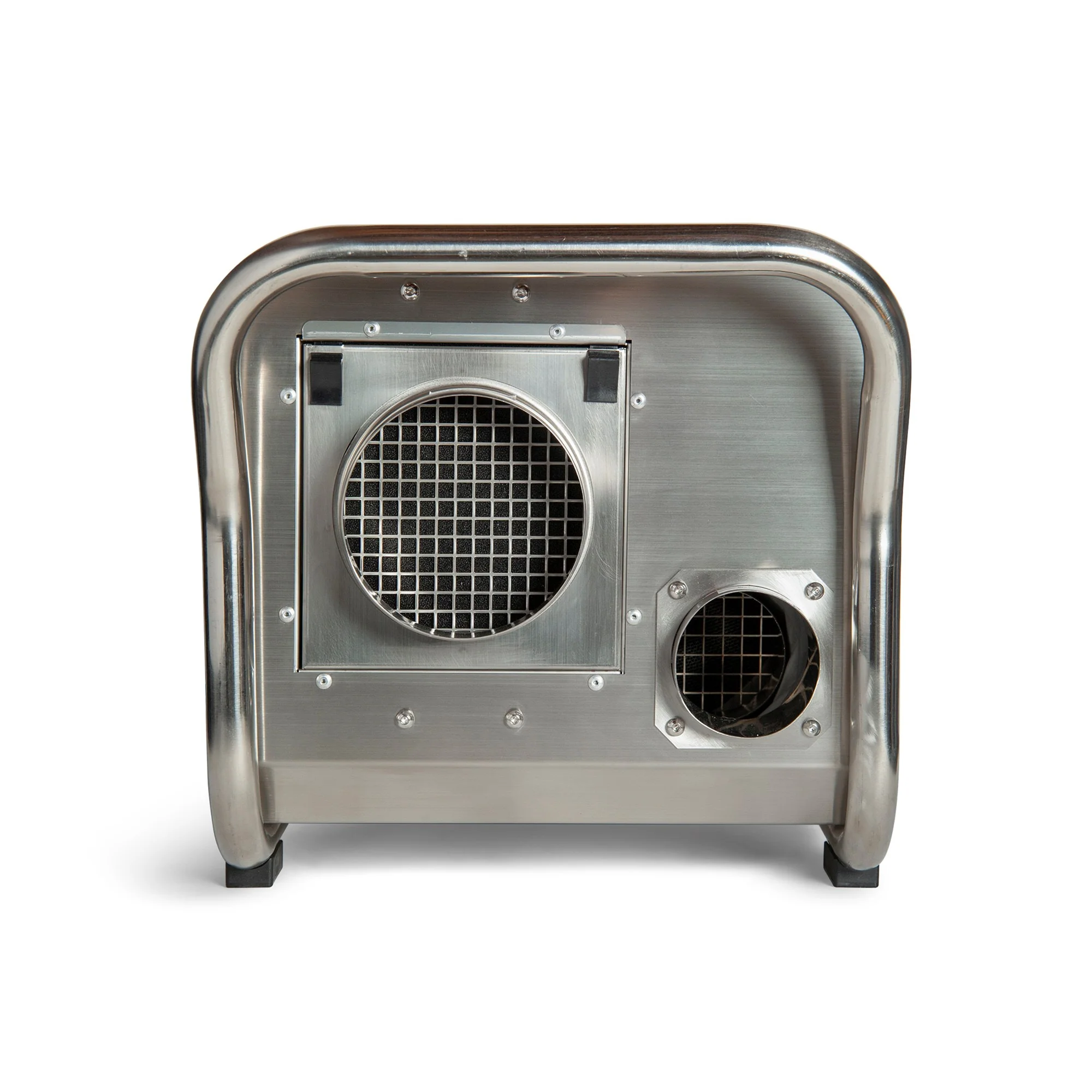

Ecor Pro EPD200 PRO DryFan 200 Pint Stainless Steel Desiccant Dehumidifier - 120V

Introducing the ECOR PRO EPD200-PRO, unique, patented, compressor-less, bucket-less, stainless steel desiccant dehumidifiers for residential and commercial drying applications. Designed to work anywhere safely all day and every day. With our newly innovated and patented DryFan Zeolite Technology, moisture can be vented outside with the unit placed in any direction, as well as eliminating water containers, pumps and hoses that were included in traditional obsolete refrigerant dehumidifiers. The EPD200-PRO desiccant dehumidifiers can work upside down or on their sides to enable easy mounting to ceilings and walls. Traditional refrigerant dehumidifiers are prone to stop working in cold environments, while ECOR PRO EPD200-PRO desiccant dehumidifiers can pull moisture even at -4°F room temperature. Compact and lightweight almost a third of the size of comparable commercial dehumidifiers, making the units easy to carry and transported from job site to job site. Typical applications include water damage restoration, hydroponics, moisture and rust protection, warehouse storage, food and timber drying, car garages, hotels, offices, workshops, large homes and food storage. EPD200-PRO's 4-hole system has two fans internally - it can be used in the same way as a 3-hole desiccant dehumidifier. However, it has the advantage of the two air flows being separate. When the wet air is exhausted, the Regen or regeneration air can also be taken from outside the room. 4-hole is more effective at drying – firstly, all the dry Process air is passed back into the room and secondly, Regen air from outside of the room may be relatively wet.

Features:

• 120Vac supply 60 Hz that can be run off a 12V DC-110V AC converters, auto power reset in case of power supply interruption.

• Commercial-grade, stainless steel construction inside and out for strength and longevity, moisture removal capacity equivalent to 200 pints refrigerant unit, using 4-hole system technology, which means two air inlets and two air outlets that can dry air pressure neutrally such as large freezer or walk-in cooler spaces.

• Operating range from -4°F up 104°F maximum room temperature for continuous drying applications, with 309 CFM air volume capacity (235 CFM - exhaust / 74 CFM - regen air flow).

• Highly efficient, very quiet fan operation at 58dB and yet low energy consumption in use for large moisture extraction capacity.

• Desiccant Rotor is the heart of the EPD200-PRO dehumidifier. It is an array of especially absorbent membranes arranged as a series of corrugations to give a vast surface area making it an extremely efficient moisture collector. It is encased in a galvanized steel ring and turns on high quality sealed ball bearing units.

• Uses a ceramic PTC (Positive Temperature Coefficient) type regen heater, which means the heating element can never overheat to hazardous temperatures, even if the regen airflow is completely blocked.

• Uses patented RadiCal backward curved fan unit, highly efficient yet quiet system, designed to give a good balance of both Process and Regen airflow. It has two internal fans where moisture is vented away by Regen air, allowing the unit to work in colder temperatures.

• Compact and smallest desiccant dehumidifier in its class, can be easily transported without the fear of water leaks after residual water in the tank; removable carrying handle for easy transport and mobility, it also protect the dehumidifier duct flanges if in transit; anti-scratch four plastic feet; IPX1 rating which means the unit can still operate even in damper conditions.

• Equally robust controls can be linked to an optional remote humidistat or switched over to manual control with on/off switch. Built-in analogue amp meter that can review performance and measure energy consumption; an hour meter that measures the number of hours the machine is in operation - an ideal feature for the rental industry.

• Wet air-out ducted with 3.0-inch diameter ducting - OPTIONAL; Damp air-in / dry air-out can be ducted with 5-inch diameter ducting - optional.

Warranty:

• 1-Year Limited Warranty

Specifications:

Brand	Ecor Pro
Model	EPD200 PRO
Barcode	860001398076
Technology	Desiccant
Safety Certification	ETL/CETL
Usage/Application	Flood and water damaged buildings, crawl spaces, attics, inside ceilings, cupboards, laundry utility rooms, boat maintenance, car garages, RV's, drying wet plaster or freshly painted rooms, keeping items dry in warehouse storage environment. Other applications such as electrical substations, gas or water pump houses, telephone exchanges, computer server rooms.
Color Finish	Stainless Steel
Housing Construction & Materials	Stainless Steel
Duct Sizes	80mm (3.0")-125mm (5")
Humidistat Inside/Humidistat Option	No/Yes
Voltage (V)	120Vac
Hertz (Hz)	60Hz
Phase	1ph
Wattage (W)	1400W
Amps (A)	11.7A
Max. Water Extraction 90°F, 90% RH (Pints / Day - Saturated)	95 PPD
Max Water Extraction 80°F, 60% RH (Pints / Day - Aham)	74 PPD
Max. Airflow Capacity (CFM) Process	235 CFM
Max. Airflow Capacity (CFM) Exhaust & Regen If Fitted	74 CFM
Max. Airflow Capacity (CFM) Process & Exhaust	309 CFM
Carrying Handle	Yes
Power Out Restart	Yes
Works from DC-AC Converter	Yes
Water Tank	No
Operating Range	-4°F ~ 104°F
Refrigerant	n/a
Sound Pressure (3 Ft.)	58dB
Speed	Single On/Off Optional Humidistat Can Be Added (Not Provided)
Power Cord Length (ft)	15 ft.
Drain Hose Length (ft)	n/a
Individual Unit Dimensions / Filter Pack (L x W x H): Weight (Pounds):	24.8 x 13.86 x 13.58 45.20 lbs.
Shipping Box Dimensions / Filter Master Pack (L x W x H): Weight (Pounds):	28.74 x 16.14 x 18.50 53.80 lbs
