Della Umbra Series 9,000 BTU 19 SEER2 Ductless Mini Split Air Conditioner Heat Pump System with 16 ft. Line Set and Installation Kit 115V (R-32)
Della Umbra Series 9,000 BTU 19 SEER2 Ductless Mini Split Air Conditioner Heat Pump System with 16 ft. Line Set and Installation Kit 115V (R-32)

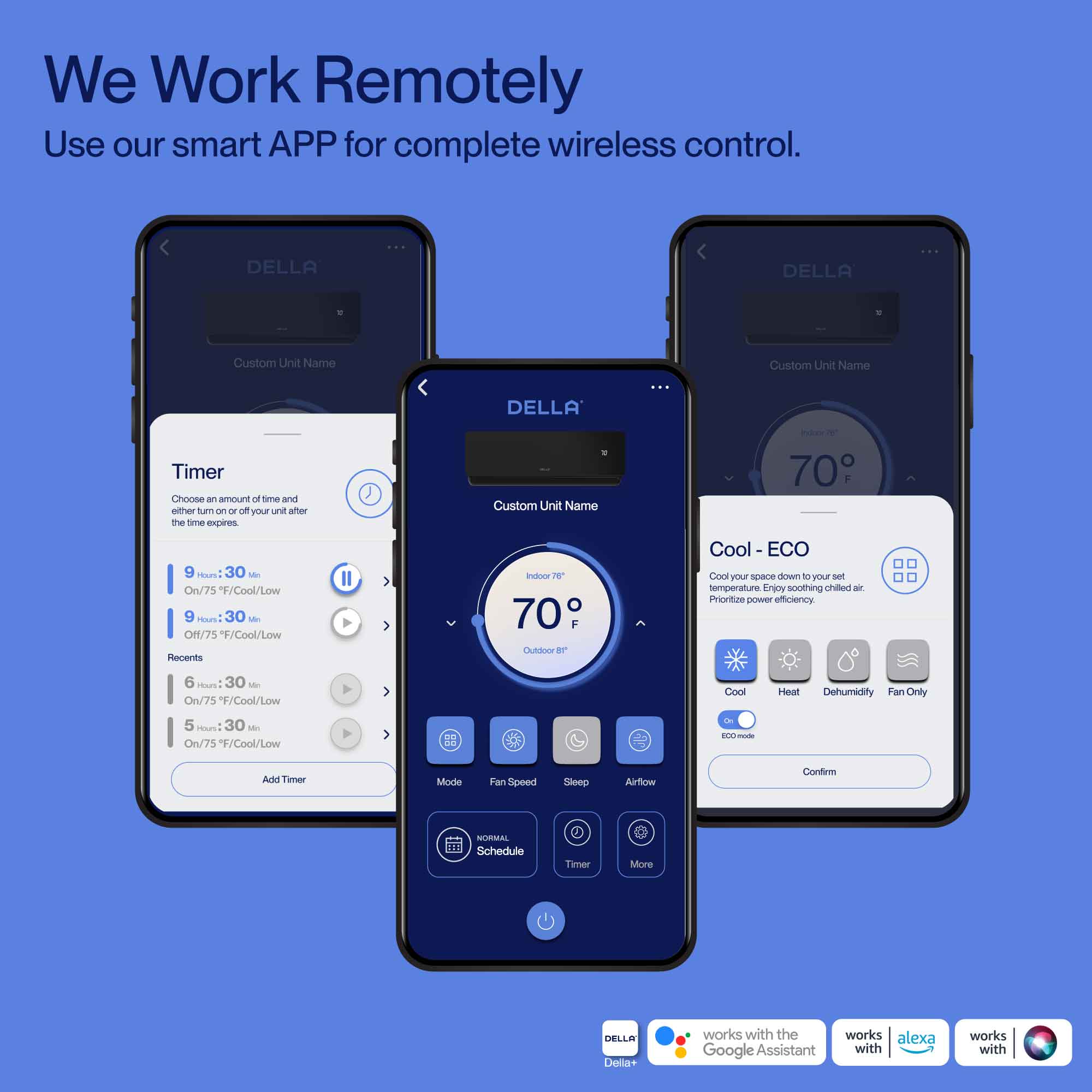

Efficiently heat or cool your space with this mini split air conditioner. This pre-charged air conditioner unit is designed with a ductless mini split inverter plus system with a heat pump and dehumidification. The device can easily be controlled and adjusted from the remote control or from the DELLA app. The package includes all of the necessities for an easy installation experience. Click here to download the user manual.
Specifications:
| Brand | Della |
| Model | 9K1VR-19S-JPB-I+O |
| Power Supply | 115 V / 60 Hz / 1P |
| Rated Cooling Capacity (Btu / h) | 9000 |
| Rated Heating Capacity (Btu / h) | 10000 |
| Cooling |
|
| Heating |
|
| Min. Circuit Ampacity | 13.2 A |
| Min. Wire Size (American Wire Gauge) | 16 AWG |
| Breaker Size | 20 A |
| Included Line Set Length | 16.4 ft / 5 m |
| Max. Distance Between Indoor and Outdoor Unit | 65.6 ft / 20 m |
| Max. Elevation Between Indoor and Outdoor Unit | 32.8 ft / 10 m |
| Factory Refrigerant Pre-charge for up to 25ft pipe | 17.6 oz / 500 g |
| Additional Refrigerant Charge | 0.17 oz / ft (16 g / m) |
| Liquid Line |
|
| Gas Line |
|
| Noise level |
|
| Indoor Unit Dimensions | 31.18" x 11.5" x 7.91" (792 mm x 292 mm x 201 mm) |
| Outdoor Unit Dimensions | 27.76" x 10.98" x 20.87" (705 mm x 279 mm x 530 mm) |
| Net Weight |
|

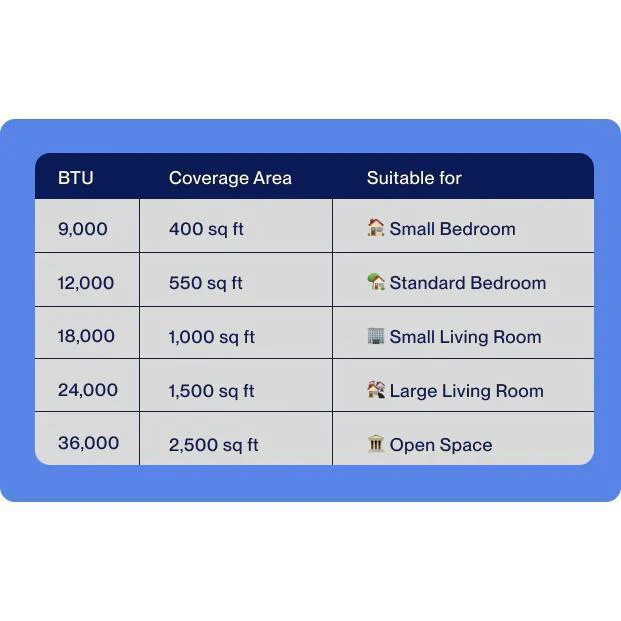

| Suitable Area | Up to 450 sq. ft |
| Moisture Removal (per hour) | 2.1 pints / 1 L |
| Refrigerant | R-32 |
| Resources | User Manual |
Frequently Asked Questions:
What kind of refrigerant does this unit use?
It uses R32 refrigerant.
Can I get longer extensions for this installation kit?
Yes, you can purchase additional lineset in our store.
When the unit is in auto mode, what will the room's temperature be maintained at?
When auto mode is turned on, the ac will start the unit's cooling mode to begin cooling until the target temp is met. After that, the unit will switch to dry mode for a short time. The final step switches to the fan-only mode that saves energy.
Do the mini condenser lines come pre-vacuumed or do they have to be vacuumed?
The mini condensor lines are not pre-vacuumed. The customer needs to vacuum the mini condenser lines during the installation process and before using it for the first time. The refrigerant is precharged in the outdoor unit.
What is the diameter of the copper line set?
The lineset copper diameter is 3/8" and 1/4".
