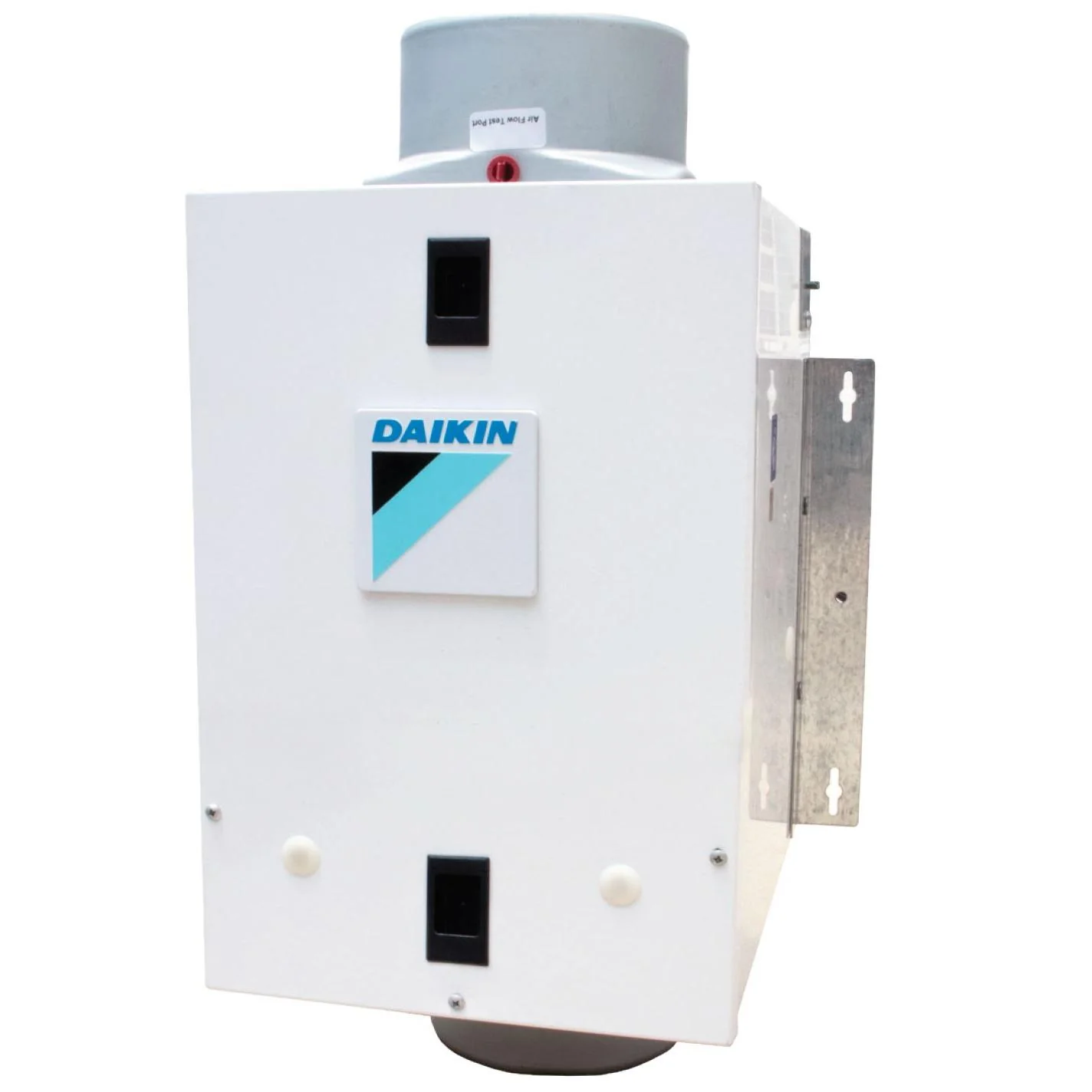

Daikin One Powered Ventilator - DQ-P-16-100
Daikin One Powered Ventilator - DQ-P-16-100
Clean air plays a significant role in a comfortable indoor environment. Without Ventilation, indoor air can often become stale. The Daikin One Powered Ventilator is a cost-effective solution designed to help solve this problem.
With the ability to set high and low temperature and humidity limits for the incoming air stream, the Daikin One Powered Ventilator will help condition air that’s too hot, cold, too humid, or dry from being introduced into the house. This helps the HVAC system maintain a comfortable environment, by not causing swings in temperature or humidity. The Daikin One Powered Ventilator meets ventilation requirements per ASHRAE 62.2 guidelines.
Features:
- Includes a MERV 16 filter that helps eliminate almost all airborne particulates from the incoming air stream (Optional MERV 13 filters available)
- Delivers between 40 and 100 CFM1 of air to the home, adjustable in 10 CFM increments
- Adjustable climate control limits prevent air from entering the house when the on board sensors detect temperature or humidity outside of selected ranges
- Compact and versatile design: can be wall or ceiling-mounted in an attic, basement, garage or crawl space
- HVI Certified performance
- Cost-effective mechanical ventilation for homes
- Low operational sound levels
- Durable, white epoxy finish
- Suitable for use in single and/or multi-family projects
- Home Ventilating Institute (HVI) Certified performance
1 When a MERV 16 filter is used
Technical Specifications:
Blower Wheel
- Balanced polymeric dual inlet blower wheel secured in place using a hex nut
Adjustable Capacity Motor
- 7 settings allow the ventilator to be set to the required intake flowrate.
Controller
- Unit mounted controller monitors temperature and humidity of incoming air and allows installer to configure ventilation flowrate and temperature and humidity limits for intake air.
Fan Housing

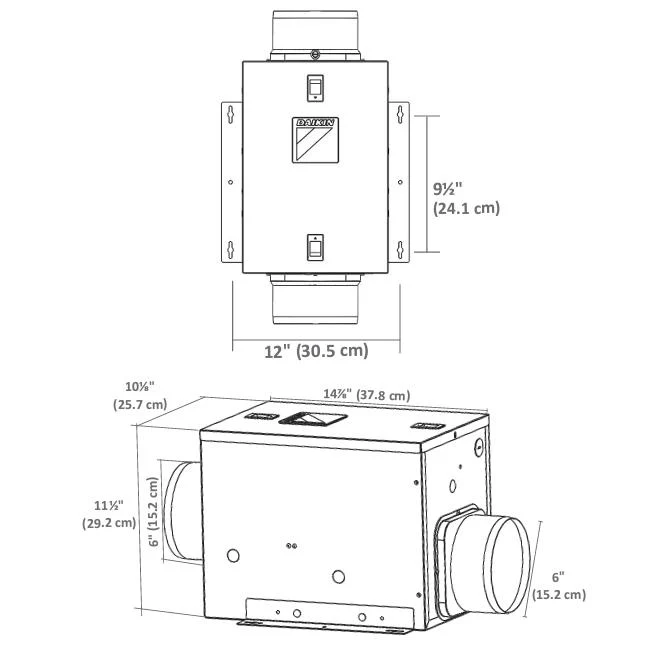

- Insulated 26 gauge baked epoxy housing. Overall dimensions: 14⅞" H x 11½" D x 10⅛" W (37.6cm H x 29.2cm D x 25.7cm W).
Duct Collars
- 6" round, zinc plated metal collar adaptors.
Electrical Connections
- Unit is designed to be easily hard wired in the field
Filter Information
- Ventilator ships with 10" H x 10" W x 2" D (25.4 cm H x 25.4 W cm x 5.1 cm D) MERV 16 intake air filter. Optional MERV 13 filter (purchased separately) available as an after market service component.
Test Port
- Allows easy air flow measurement with Pitot tube or similar airflow measurement device.
Single Pack Shipping Info
- Shipping carton dimensions: 15¾" H x 12¾" W x 23" D (40 cm H x 32.4 cm W x 58.4 cm D)
- Shipping weight: 18 lbs (3.85 kg)
Ventilator Accessories
The capabilities of the Daikin One Powered Ventilator can be enhanced by adding any of the following optional accessories (sold separately):
- Heater (70 CFM & Higher) DQ-P-70-AH-H
- Motorized Damper kit DQ-P-MDV
- Air Intake Hood DQ-P-AIH
Power consumption of Ventilator at various flowrates
| Flow Rate @ 0.2" w.c. | |
| (CFM) | Power (W) |
| 100 | 26.3 |
| 90 | 21.8 |
| 80 | 19.5 |
| 70 | 17.1 |
| 60 | 15.1 |
| 50 | 13 |
| 40 | 11.3 |
Accessories (Available separately)
- Heater (DQ-P-70-AH-H) for warming incoming air on cold days
- Motorized Damper (DQ-P-MDV) that opens only when the ventilator is operating to help reduce drafts
- MERV 13 filter (DQ-P-F-13) for systems with high static pressure drop where a MERV 16 filter might restrict the airflow too much
- Home Ventilating Institute (HVI) certified Air Intake Hood (DQ-P-AIH) for low pressure drop intake duct termination. Learn more at www.HVI.org if desired.
Certifications
- ETL Listed, HVI Certified
Warranty
- 5 Year Parts Warranty
Product Information and Guides:
Resources
- Daikin One Powered Ventilator - Product Flyer
- Daikin One Powered Ventilator - Spec Sheet
- Daikin One Powered Ventilator - Installation & Operation Manual
Accessories (Heater DQ-P-70-AH-H)
- Heater Accessory for Daikin One Powered Ventilator - Spec Sheet
- Heater Accessory for Daikin One Powered Ventilator - Installation & Operation Manual
Accessories (Motorized Damper DQ-P-MDV)
- Motorized Damper Accessory Kit for Daikin One Powered Ventilator - Spec Sheet
- Motorized Damper Accessory Kit for Daikin One Powered Ventilator - Installation & Operation Manual
Accessories (Air Intake Hood DQ-P-AIH)
- Air Intake Hood Accessory for Daikin One Powered Ventilator - Spec Sheet
- Air Intake Hood Accessory for Daikin One Powered Ventilator - Installation Manual
