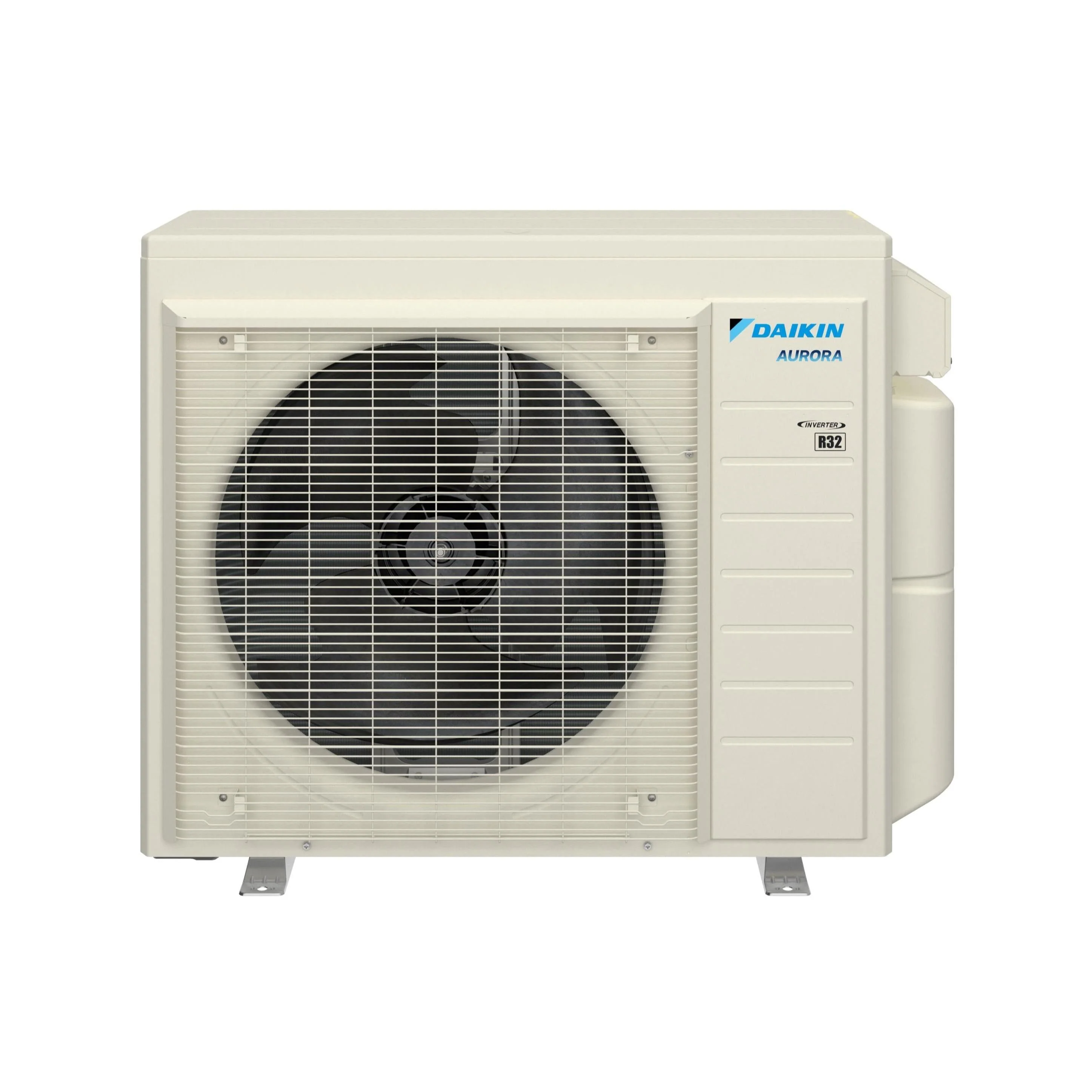

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9
Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9
Daikin's Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design, with the ability to connect two, three, or four indoor units to a single outdoor unit, The Daikin MXM 4MXM36AVJU9 offers energy efficiency levels up to 20 SEER2 and 9.5 HSPF2 for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split Systems are the smart, reliable solution for your home.
Features:
- Up to 48,000 BTU's - See Combination Capacity Chart here
- Pre-Charged for 131.2 ft of line set length
- World-renowned Daikin Inverter "Variable Speed" compressor technology
- Space-saving design and precision temperature control for individual rooms
- Cooling Range 14°F- 115°F (See full operating temperature details here)
- Heating Range 5°F - 75°F (See full operating temperature details here)
- Quick and easy installation
- Quiet operation
- R-32 Refrigerant Type
Specifications:
| Brand | Daikin |
| Model | 4MXM36AVJU9 |
| Warranty | 12 Year limited parts warranty with online registration. Click here for full warranty details |
| BTU | 36,000 BTU (Up to 48,000 BTU) - See Combination Capacity Chart here |
| Power Supply |
|
| COP@5°F | W/W: 1.8 |
| EER2 (Btu/W·h) |
10.0 |
| SEER2 | 20.0 |
| HSPF2 | 9.5 |
| Casing Color | Ivory White |
| Compressor |
|
| Refrigerant Oil |
|
| Refrigerant |
|
| Airflow Rates |
|
| Fan |
|
| Starting Current | 18.5 A |
| Dimensions (H × W × D) | 29-1/2 × 34-1/4 × 12-5/8 inches (750 × 870 × 320 mm) |
| Packaged Dimensions (H × W × D) | 32-1/16 × 40-5/16 × 16 inches (814 × 1,024 × 406 mm) |
| Weight (Mass) | 142 lbs (65 kg) |
| Gross Weight (Gross Mass) | 150 lbs (68 kg) |
| Sound Pressure Level |
|
| Piping Connection (inches) |
|
| Heat Insulation | Both Liquid and Gas Pipes |
| No. of Wiring Connections | 3 for Power Supply, 4 for Interunit Wiring (Including Ground Wiring) |
| Max. Interunit Piping Length |
|
| Amount of Additional Charge oz/ft(g/m) | 0.22 (20) (131-1/4 ft (40 m) or more) |
| Max. Installation Height Difference |
|
| Conditions Based on Cooling |
|
| Conditions Based on Heating |
|
|
Resources |
