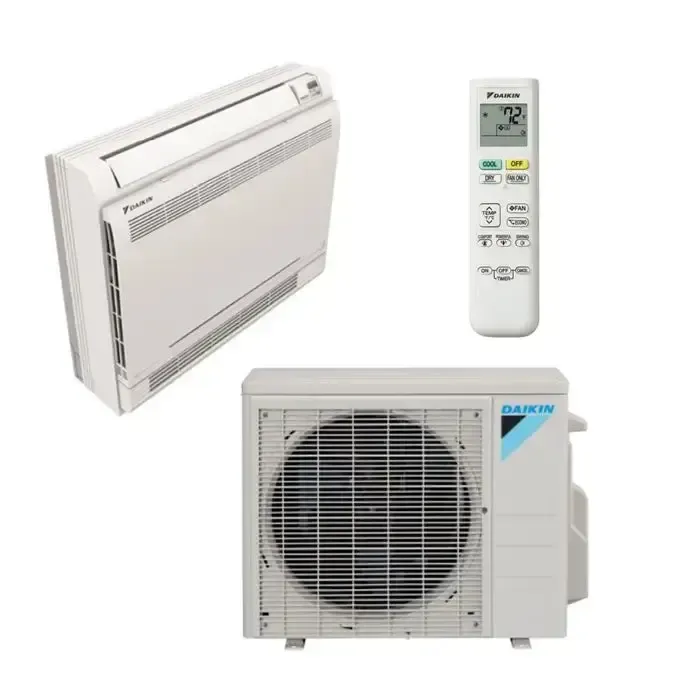

Daikin AURORA 9,000 BTU 19.5 SEER2 Floor Mount Mini Split Inverter Heat Pump System 208/230V
Daikin AURORA 9,000 BTU 19.5 SEER2 Floor Mount Mini Split Inverter Heat Pump System 208/230V
Living in colder climates doesn’t mean a heat pump isn’t a viable option to heat each space in your home or business, nor does living in warmer climates preclude the use of a heat pump as a viable option for cooling. The outdoor units of this Daikin AURORA heat pump system have been redesigned to withstand extreme weather conditions, even when it is down to -13°F WB (-25°C WB) or up to 115°F DB (46°C DB) for year round comfort.
Premium comfort features:
- Energy Efficient: 19.5 SEER2 / Up to 9.7 HSPF2 / Up to 11.5 EER2 for ultra-efficient cooling and heating operation and reduced operating costs compared to conventional lower-efficiency systems.
- Advanced Filtration: Long life, washable filters.
- Enhanced Capacity: Up to 100% rated cooling capacity at 104°F DB (40°C DB).
- Up to 90% rated cooling capacity at 115°F DB (46°C DB)
- Up to 100% rated heating capacity at 5°F WB (-15°C WB) and confirmed continuous operation as low -13°F WB (-25°C WB) ambient temperature
Ideal solution for:
- Primary living areas (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction
Outdoor unit features:
- Anti-Corrosion Treatment on Heat Exchanger
- Auto-Restart: The unit memorizes the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
- Outdoor Unit Quiet Operation
Indoor unit features:
- Air Outlet Selection Switch: Choose between air blowing out of the upper outlet only, or have the system automatically decide a blow pattern depending on mode and conditions (recommended setting).
- Econo Mode: Limits the maximum operating current and power consumption of the outdoor unit by approximately 30% during start-up.
- Titanium Apatite Photocatalytic Air Purifying Filter: This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit.
Specifications:
| Brand | Daikin |
| Model |
Indoor Unit: FVXS09WVJU9 Outdoor Unit: RXL09WMVJU9 |
| Warranty |
12 Year Parts Warranty 12 Year Compressor Warranty |
| Power Supply | 1 φ, 208 - 230 V, 60 Hz |
| Capacity Rated (Min. - Max.) |
Cooling (BTU/H): 9,000 (4,400 - 10,200) Heating (BTU/H): 10,100 (4,400 - 14,300) |
| Running Current (Rated) |
Cooling: 4.08 - 3.69 A Heating: 3.91 - 3.54 A |
| Power Consumption (Rated) |
Cooling: 783 - 783 W Heating: 767 - 767 W |
| Power Factor (Rated) |
Cooling: 92.3 - 92.3 Heating: 94.3 - 94.3 |
| SEER2 / HSPF2 | 19.50 / 9.70 |
| EER2 (Rated) | 11.50 |
| COP2 (Rated) | 3.86 |
| Piping Connections |
Liquid (in): 1/4 Gas (in): 3/8 Drain (in): 13/16 |
| Heat Insulation | Both Liquid and Gas Pipes |
| Max. Interunit Piping Length (ft) | 65-5/8 |
| Max. Interunit Height Difference (ft) | 49-1/4 |
| Chargeless (ft) | 32-3/4 |
| Amount of Additional Charge of Refrigerant oz/ft (g/m) | 0.21 (20) |
| Air Filter | Removable, Washable, Mildew Proof |
| Indoor Unit Air Flow Rate (cfm) |
Cooling (H / M / L / SL): 290 / 230 / 169 / 145 Heating (H / M / L / SL): 311 / 244 / 177 / 155 |
| Indoor Unit Sound Pressure Level (dBA) | H / M / L / SL: 38 / 32 / 26 / 23 |
| Outdoor Unit Airflow (cfm) |
Cooling: 1,105 Heating: 922 |
| Outdoor Unit Sound Pressure Level (dBA) | 49 |
| Indoor Unit Dimensions (H x W x D) | 23-5/8 × 27-9/16 × 8-1/4 inches |
| Outdoor Unit Dimensions (H x W x D) | 21-5/8 × 26-9/16 × 11-3/16 |
| Indoor Unit Packaged Dimensions ( H x W x D) | 27-3/8 × 30-15/16 × 11 inches |
| Outdoor Unit Packaged Dimensions (H x W x D) | 23-13/16 × 31-7/16 × 14-11/16 inches |
| Indoor Unit Weight | 31 lbs |
| Outdoor Unit Weight | 63 lbs |
| Indoor Unit Packaged Weight | 38 lbs |
| Outdoor Unit Packaged Weight | 68 lbs |
| Resources |
