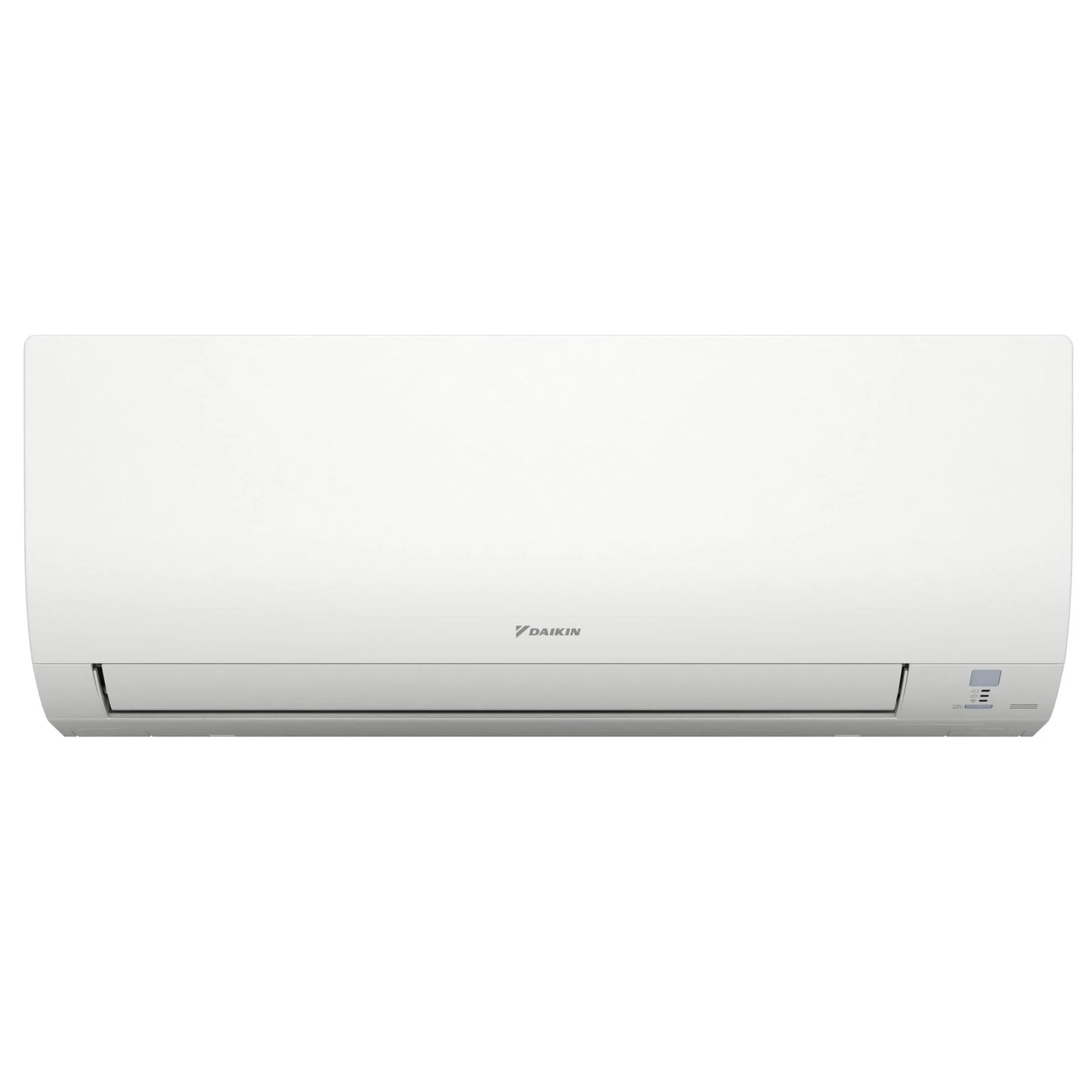

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9
Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9
Features:
- Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
- Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
- On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
- COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
-
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
- ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
- Auto Operation: To automatically select an appropriate temperature and operation mode.
- Cool Operation: To lower the temperature.
- Dry Operation: To lower the humidity
- Heat Operation: To raise the temperature.
- Fan Only Operation: To circulate air in the room.
Specifications:
| Brand | Daikin |
| Model | CTXV07AVJU9 |
| Warranty | 12 Years - See full warranty details here |
| Power Supply |
Phase: 1 Hz, V: 60 Hz, 208 - 230 V |
| Rated Capacity | 7 kBtu/h Class |
| Front Panel Color (Munsell No.) | White (N9.5) |
| Airflow Rates (Cooling) |
|
| Airflow Rates (Heating) |
|
| Fan |
|
| Air Direction Control | Right, Left, Horizontal, Downward |
| Air Filter | Removable, Washable |
| Running Current (Rated) |
|
| Power Consumption (Rated) |
|
| Power Factor (Rated) |
|
| Temperature Control | Microcomputer Control |
| Dimensions (H × W × D) | 11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm) |
| Packaged Dimensions (H × W × D) | 12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm) |
| Weight (Mass) | 19 lbs (9 kg) |
| Gross Weight (Gross Mass) | 24 lbs (11 kg) |
| Sound Pressure Level Cooling | H / M / L / SL: 40 / 35 / 31 / 24 dB(A) |
| Sound Pressure Level Heating | H / M / L / SL: 39 / 34 / 28 / 25 dB(A) |
| Heat Insulation | Both Liquid and Gas Pipes |
| Piping Connection |
|
| Drawing No. | 3D153215A |
| Note | SL: The quiet fan level of the airflow rate setting |
| Resources |
