Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own

1 / 7

Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own

Design your own 2, 3, or 4 Multi Zone R32 Daikin Mini Split System Today! Daikin’s split and multi-split type air conditioning systems offer superior performance, energy-efficiency, and comfort in stylish solutions conforming to all interior spaces and lifestyles. An extensive product lineup utilizes Daikin technology for lower costs and environmental impact. If you need help selecting the right air handlers for your Daikin 2 - 3 - 4 Zone Mini Split System, see the the "Multi Zone Combination Chart" below.

Features:

World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F - 115°F
Heating Range 5°F - 60°F (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation

Daikin Advantage:

Individual Control: Each indoor unit can be operated independently to deliver air comfort only to rooms where needed.
Energy and Cost Savings: Advanced inverter and heat pump technologies achieve greater efficiency and energy-savings at lower costs.
Flexible Installation: Daikin compact split/multi-split air conditioners easily install to residences where space is limited.
Extensive Product Lineup: A broad array of models allows the perfect match of style and performance to any interior space.

Multi Zone Combination Chart:

Two Units	Three units	4 Units
7 + 7	7 + 7 + 7	7 + 7 + 7 + 07
7 + 9	7 + 7 + 9	7 + 7 + 7 + 09
7 + 12	7 + 7 + 12	7 + 7 + 7 + 12
7 + 15	7 + 7 + 15	7 + 7 + 7 + 15
7 + 18	7 + 7 + 18	7 + 7 + 7 + 18
7 + 24	7 + 7 + 24	7 + 7 + 7 + 24
9 + 9	7 + 9 + 9	7 + 7 + 9 + 9
9 + 12	7 + 9 + 12	7 + 7 + 9 + 12
9 + 15	7 + 9 + 15	7 + 7 + 9 + 15
9 + 18	7 + 9 + 18	7 + 9 + 9 + 18
9 +24	7 + 9 + 24	7 + 7 + 9 + 24
12 + 12	7 + 12 + 12	7 + 7 + 12 + 12
12 + 15	7 + 12 + 15	7 + 7 + 12 + 15
12 + 18	7 + 12 + 18	7 + 7 + 12 + 18
12 + 24	7 + 12 + 24	7 + 7 + 15 + 15
15 + 15	7 + 15 + 15	7 + 7 + 15 + 18
15 + 18	7 + 15 + 18	7 + 9 + 9 + 9
15 + 24	7 + 15 + 24	7 + 9 + 9 + 12
18 + 18	7 + 18 + 18	7 + 9 + 9 + 15
15 + 18	9 + 9 + 9	7 + 9 + 9 + 18
15 + 24	9 + 9 + 12	7 + 9 + 12 + 12
18 + 18	9 + 9 + 15	7 + 9 + 12 + 15
18 + 24	9 + 9 + 18	7 + 9 + 12 + 18
24 + 24	9 + 9 + 24	7 + 9 + 15 + 15
	9 + 12 + 12	7 + 12 + 12 + 12
	9 + 12 + 15	7 + 12 + 12 + 15
	9 + 12 + 18	9 + 9 + 9 + 9
	9 + 12 + 24	9 + 9 + 9 + 12
	9 + 15 + 15	9 + 9 + 9 + 15
	9 + 15 + 18	9 + 9 + 9 + 18
	9 + 15 + 24	9 + 9 + 12 + 12
	9 + 18 + 18	9 + 9 + 12 + 15
	12 + 12 + 12	9 + 9 + 12 + 18
	12 + 12 + 15	9 + 9 + 15 + 15
	12 + 12 + 18	9 + 12 + 12 + 12
	12 + 12 + 24	9 + 12 + 12 + 15
	12 + 15 + 15	12 + 12 + 12 + 12
	12 + 15 + 18
	12 + 18 + 18
	15 + 15 + 15
	15 + 15 + 18

Included Outdoor Unit:

1x Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9

Daikin's Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design, with the ability to connect two, three, or four indoor units to a single outdoor unit, The Daikin MXM 4MXM36AVJU9 offers energy efficiency levels up to 20 SEER2 and 9.5 HSPF2 for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split Systems are the smart, reliable solution for your home.

Features:

Up to 48,000 BTU's - See Combination Capacity Chart here
Pre-Charged for 131.2 ft of line set length
World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F- 115°F (See full operating temperature details here)
Heating Range 5°F - 75°F (See full operating temperature details here) (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation
R-32 Refrigerant Type

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Optional Indoor Units:

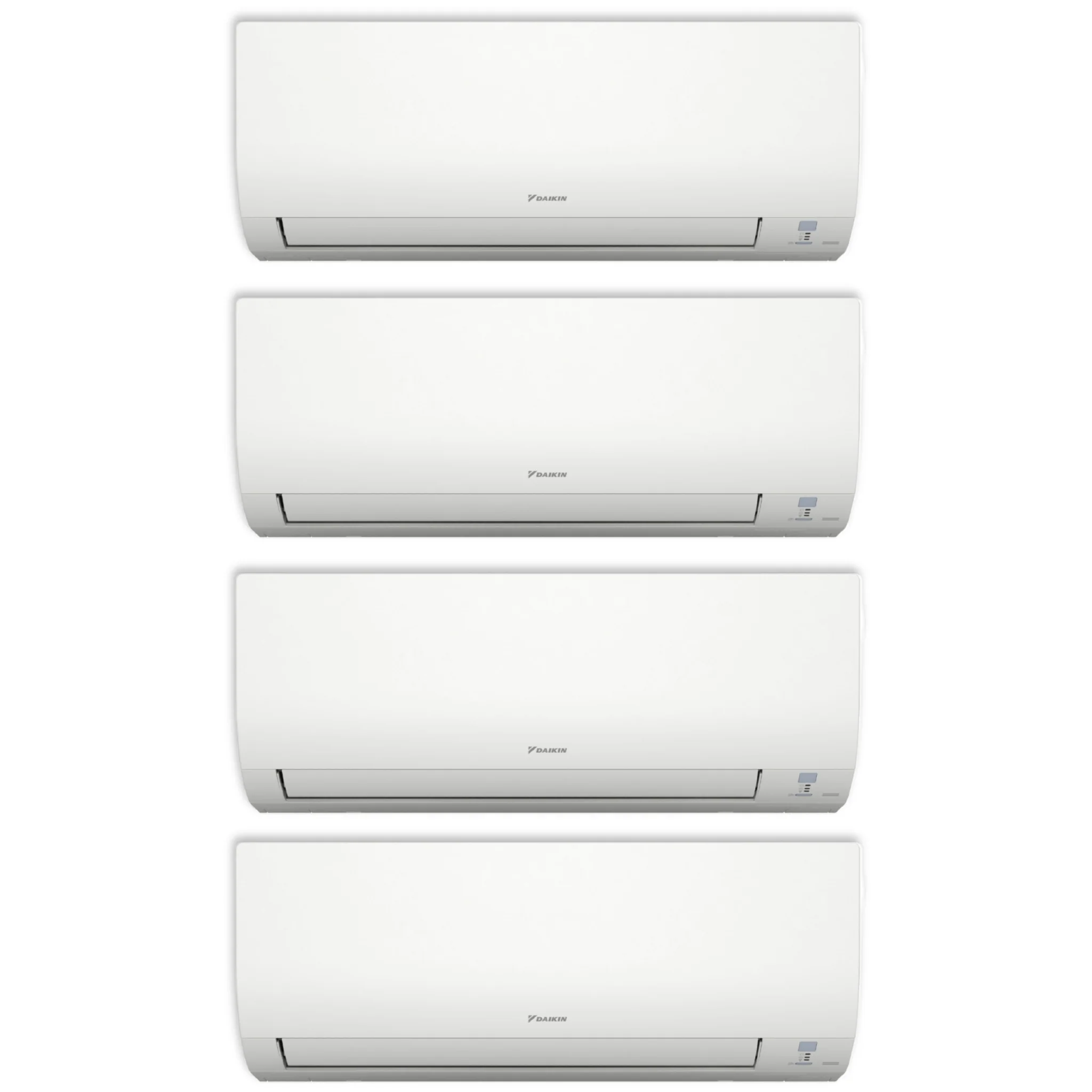

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9 Specifications:

Brand	Daikin
Model	4MXM36AVJU9
Warranty	12 Year limited parts warranty with online registration. Click here for full warranty details
BTU	36,000 BTU (Up to 48,000 BTU) - See Combination Capacity Chart here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V MCA: 24.1 MOP: 25.0
COP@5°F	W/W: 1.8
EER2 (Btu/W·h)	10.0
SEER2	20.0
HSPF2	9.5
Casing Color	Ivory White
Compressor	Type: Hermetically Sealed Swing Type Model: 2Y260BPAX1A Motor Output (W): 2,400W
Refrigerant Oil	Model: FW68DA Charge fl oz (L): 30.4 (0.9)
Refrigerant	Type: R-32 Charge lbs (kg): 4.9 (2.2) Pre-Charge: Pre-Charged for 131.2 ft of line set length
Airflow Rates	Cooling: 2,402 (cfm) / 68.0 (m³/min) Heating: 2,518 (cfm) / 71.3 (m³/min)
Fan	Type: Propeller Motor Output: 150 W Running Current(Cooling / Heating): 0.44 A / 0.49 A Power Consumption(Cooling / Heating): 90.9 W / 102.7 W
Starting Current	18.5 A
Dimensions (H × W × D)	29-1/2 × 34-1/4 × 12-5/8 inches (750 × 870 × 320 mm)
Packaged Dimensions (H × W × D)	32-1/16 × 40-5/16 × 16 inches (814 × 1,024 × 406 mm)
Weight (Mass)	142 lbs (65 kg)
Gross Weight (Gross Mass)	150 lbs (68 kg)
Sound Pressure Level	Cooling: 56 dB(A) Heating: 60 dB(A)
Piping Connection (inches)	Liquid: 1/4 x 4 Gas: 3/8 x 1, 1/2 x 2, 5/8 x 1 Drain: 5/8 inches
Heat Insulation	Both Liquid and Gas Pipes
No. of Wiring Connections	3 for Power Supply, 4 for Interunit Wiring (Including Ground Wiring)
Max. Interunit Piping Length	230 ft (70 mm) (for Total of Each Room) 82 ft (25mm) (for One Room)
Amount of Additional Charge oz/ft(g/m)	0.22 (20) (131-1/4 ft (40 m) or more)
Max. Installation Height Difference	49-1/4 ft (15 mm) (Between Indoor Unit and Outdoor Unit) 24-5/8 ft (7.5 mm) (Between Indoor Units)
Conditions Based on Cooling	Indoor ; 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) Outdoor ; 95°FDB (35°CDB) / 75°FWB (24°CWB) Piping length: 25 ft (7.5 m)
Conditions Based on Heating	Indoor ; 70°FDB (21°CDB) / 60°FWB (15.6°CWB) Outdoor ; 47°FDB (8.3°CDB) / 43°FWB (6°CWB) Piping length: 25 ft (7.5 m)
Resources	Installation Manual General Safety Considerations Engineering Manual Engineering Manual 2 Dimensional Drawing Combination Capacity Chart Operating Temperature / Ambient Temp Warranty

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9 Specifications:

Brand	Daikin
Model	CTXV07AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	7 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 332 cfm (9.4 m³/min) M: 268 cfm (7.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 332 cfm (9.4 m³/min) M: 279 cfm (7.9 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.11 A - 0.10 A Heating: 0.12 A - 0.11 A
Power Consumption (Rated)	Cooling: 20 W - 20 W Heating: 23 W - 23 W
Power Factor (Rated)	Cooling: 87.0% - 90.3% Heating: 94.0% - 91.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 40 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 39 / 34 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9 Specifications:

Brand	Daikin
Model	FTXV09AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	9 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 381 cfm (10.8 m³/min) M: 272 cfm (7.7 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 385 cfm (10.9 m³/min) M: 304 cfm (8.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.14 A - 0.13 A Heating: 0.13 A - 0.12 A
Power Consumption (Rated)	Cooling: 26 W - 26 W Heating: 25 W - 25 W
Power Factor (Rated)	Cooling: 90.4% - 86.2% Heating: 90.9% - 87.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 43 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 41 / 35 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9 Specifications:

Brand	Daikin
Model	FTXV12AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	12 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 392 cfm (11.1 m³/min) M: 293 cfm (8.3 m³/min) L: 226 cfm (6.4 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 438 cfm (12.4 m³/min) M: 318 cfm (9.0 m³/min) L: 240 cfm (6.8 m³/min) SL: 205 cfm (5.8 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.23 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.17 A - 0.15 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 29 W - 29 W Heating: 35 W - 35 W
Power Factor (Rated)	Cooling: 81.3% - 84.7% Heating: 83.7% - 82.7%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 37 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 37 / 30 / 26 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9 Specifications:

Brand	Daikin
Model	FTXV15AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	15 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 540 cfm (15.3 m³/min) M: 470 cfm (13.3 m³/min) L: 381 cfm (10.8 m³/min) SL: 339 cfm (9.6 m³/min)
Airflow Rates (Heating)	H: 636 cfm (18.0 m³/min) M: 537 cfm (15.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.31 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.19 A - 0.17 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 36 W - 36 W Heating: 39 W - 39 W
Power Factor (Rated)	Cooling: 91.1% - 93.5% Heating: 93.8% - 92.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 41 / 36 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 41 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9 Specifications:

Brand	Daikin
Model	FTXV18AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	18 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 565 cfm (16.0 m³/min) M: 463 cfm (13.1 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.40 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.20 A - 0.18 A Heating: 0.29 A - 0.26 A
Power Consumption (Rated)	Cooling: 39 W - 39 W Heating: 54 W - 54 W
Power Factor (Rated)	Cooling: 93.8% - 92.5% Heating: 89.5% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 48 / 43 / 38 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 42 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9 Specifications:

Brand	Daikin
Model	FTXV24AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	24 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 629 cfm (17.8 m³/min) M: 501 cfm (14.2 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 466 cfm (13.2 m³/min) SL: 413 cfm (11.7 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.45 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.31 A - 0.28 A Heating: 0.30 A - 0.27 A
Power Consumption (Rated)	Cooling: 57 W - 57 W Heating: 55 W - 55 W
Power Factor (Rated)	Cooling: 88.4% - 88.7% Heating: 88.1% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 52 / 45 / 39 / 34 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 43 / 38 / 34 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 5/8 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own

Features:

World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F - 115°F
Heating Range 5°F - 60°F (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation

Daikin Advantage:

Individual Control: Each indoor unit can be operated independently to deliver air comfort only to rooms where needed.
Energy and Cost Savings: Advanced inverter and heat pump technologies achieve greater efficiency and energy-savings at lower costs.
Flexible Installation: Daikin compact split/multi-split air conditioners easily install to residences where space is limited.
Extensive Product Lineup: A broad array of models allows the perfect match of style and performance to any interior space.

Multi Zone Combination Chart:

Two Units	Three units	4 Units
7 + 7	7 + 7 + 7	7 + 7 + 7 + 07
7 + 9	7 + 7 + 9	7 + 7 + 7 + 09
7 + 12	7 + 7 + 12	7 + 7 + 7 + 12
7 + 15	7 + 7 + 15	7 + 7 + 7 + 15
7 + 18	7 + 7 + 18	7 + 7 + 7 + 18
7 + 24	7 + 7 + 24	7 + 7 + 7 + 24
9 + 9	7 + 9 + 9	7 + 7 + 9 + 9
9 + 12	7 + 9 + 12	7 + 7 + 9 + 12
9 + 15	7 + 9 + 15	7 + 7 + 9 + 15
9 + 18	7 + 9 + 18	7 + 9 + 9 + 18
9 +24	7 + 9 + 24	7 + 7 + 9 + 24
12 + 12	7 + 12 + 12	7 + 7 + 12 + 12
12 + 15	7 + 12 + 15	7 + 7 + 12 + 15
12 + 18	7 + 12 + 18	7 + 7 + 12 + 18
12 + 24	7 + 12 + 24	7 + 7 + 15 + 15
15 + 15	7 + 15 + 15	7 + 7 + 15 + 18
15 + 18	7 + 15 + 18	7 + 9 + 9 + 9
15 + 24	7 + 15 + 24	7 + 9 + 9 + 12
18 + 18	7 + 18 + 18	7 + 9 + 9 + 15
15 + 18	9 + 9 + 9	7 + 9 + 9 + 18
15 + 24	9 + 9 + 12	7 + 9 + 12 + 12
18 + 18	9 + 9 + 15	7 + 9 + 12 + 15
18 + 24	9 + 9 + 18	7 + 9 + 12 + 18
24 + 24	9 + 9 + 24	7 + 9 + 15 + 15
	9 + 12 + 12	7 + 12 + 12 + 12
	9 + 12 + 15	7 + 12 + 12 + 15
	9 + 12 + 18	9 + 9 + 9 + 9
	9 + 12 + 24	9 + 9 + 9 + 12
	9 + 15 + 15	9 + 9 + 9 + 15
	9 + 15 + 18	9 + 9 + 9 + 18
	9 + 15 + 24	9 + 9 + 12 + 12
	9 + 18 + 18	9 + 9 + 12 + 15
	12 + 12 + 12	9 + 9 + 12 + 18
	12 + 12 + 15	9 + 9 + 15 + 15
	12 + 12 + 18	9 + 12 + 12 + 12
	12 + 12 + 24	9 + 12 + 12 + 15
	12 + 15 + 15	12 + 12 + 12 + 12
	12 + 15 + 18
	12 + 18 + 18
	15 + 15 + 15
	15 + 15 + 18

Included Outdoor Unit:

1x Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9

Features:

Up to 48,000 BTU's - See Combination Capacity Chart here
Pre-Charged for 131.2 ft of line set length
World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F- 115°F (See full operating temperature details here)
Heating Range 5°F - 75°F (See full operating temperature details here) (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation
R-32 Refrigerant Type

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Optional Indoor Units:

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9 Specifications:

Brand	Daikin
Model	4MXM36AVJU9
Warranty	12 Year limited parts warranty with online registration. Click here for full warranty details
BTU	36,000 BTU (Up to 48,000 BTU) - See Combination Capacity Chart here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V MCA: 24.1 MOP: 25.0
COP@5°F	W/W: 1.8
EER2 (Btu/W·h)	10.0
SEER2	20.0
HSPF2	9.5
Casing Color	Ivory White
Compressor	Type: Hermetically Sealed Swing Type Model: 2Y260BPAX1A Motor Output (W): 2,400W
Refrigerant Oil	Model: FW68DA Charge fl oz (L): 30.4 (0.9)
Refrigerant	Type: R-32 Charge lbs (kg): 4.9 (2.2) Pre-Charge: Pre-Charged for 131.2 ft of line set length
Airflow Rates	Cooling: 2,402 (cfm) / 68.0 (m³/min) Heating: 2,518 (cfm) / 71.3 (m³/min)
Fan	Type: Propeller Motor Output: 150 W Running Current(Cooling / Heating): 0.44 A / 0.49 A Power Consumption(Cooling / Heating): 90.9 W / 102.7 W
Starting Current	18.5 A
Dimensions (H × W × D)	29-1/2 × 34-1/4 × 12-5/8 inches (750 × 870 × 320 mm)
Packaged Dimensions (H × W × D)	32-1/16 × 40-5/16 × 16 inches (814 × 1,024 × 406 mm)
Weight (Mass)	142 lbs (65 kg)
Gross Weight (Gross Mass)	150 lbs (68 kg)
Sound Pressure Level	Cooling: 56 dB(A) Heating: 60 dB(A)
Piping Connection (inches)	Liquid: 1/4 x 4 Gas: 3/8 x 1, 1/2 x 2, 5/8 x 1 Drain: 5/8 inches
Heat Insulation	Both Liquid and Gas Pipes
No. of Wiring Connections	3 for Power Supply, 4 for Interunit Wiring (Including Ground Wiring)
Max. Interunit Piping Length	230 ft (70 mm) (for Total of Each Room) 82 ft (25mm) (for One Room)
Amount of Additional Charge oz/ft(g/m)	0.22 (20) (131-1/4 ft (40 m) or more)
Max. Installation Height Difference	49-1/4 ft (15 mm) (Between Indoor Unit and Outdoor Unit) 24-5/8 ft (7.5 mm) (Between Indoor Units)
Conditions Based on Cooling	Indoor ; 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) Outdoor ; 95°FDB (35°CDB) / 75°FWB (24°CWB) Piping length: 25 ft (7.5 m)
Conditions Based on Heating	Indoor ; 70°FDB (21°CDB) / 60°FWB (15.6°CWB) Outdoor ; 47°FDB (8.3°CDB) / 43°FWB (6°CWB) Piping length: 25 ft (7.5 m)
Resources	Installation Manual General Safety Considerations Engineering Manual Engineering Manual 2 Dimensional Drawing Combination Capacity Chart Operating Temperature / Ambient Temp Warranty

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9 Specifications:

Brand	Daikin
Model	CTXV07AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	7 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 332 cfm (9.4 m³/min) M: 268 cfm (7.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 332 cfm (9.4 m³/min) M: 279 cfm (7.9 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.11 A - 0.10 A Heating: 0.12 A - 0.11 A
Power Consumption (Rated)	Cooling: 20 W - 20 W Heating: 23 W - 23 W
Power Factor (Rated)	Cooling: 87.0% - 90.3% Heating: 94.0% - 91.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 40 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 39 / 34 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9 Specifications:

Brand	Daikin
Model	FTXV09AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	9 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 381 cfm (10.8 m³/min) M: 272 cfm (7.7 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 385 cfm (10.9 m³/min) M: 304 cfm (8.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.14 A - 0.13 A Heating: 0.13 A - 0.12 A
Power Consumption (Rated)	Cooling: 26 W - 26 W Heating: 25 W - 25 W
Power Factor (Rated)	Cooling: 90.4% - 86.2% Heating: 90.9% - 87.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 43 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 41 / 35 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9 Specifications:

Brand	Daikin
Model	FTXV12AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	12 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 392 cfm (11.1 m³/min) M: 293 cfm (8.3 m³/min) L: 226 cfm (6.4 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 438 cfm (12.4 m³/min) M: 318 cfm (9.0 m³/min) L: 240 cfm (6.8 m³/min) SL: 205 cfm (5.8 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.23 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.17 A - 0.15 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 29 W - 29 W Heating: 35 W - 35 W
Power Factor (Rated)	Cooling: 81.3% - 84.7% Heating: 83.7% - 82.7%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 37 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 37 / 30 / 26 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9 Specifications:

Brand	Daikin
Model	FTXV15AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	15 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 540 cfm (15.3 m³/min) M: 470 cfm (13.3 m³/min) L: 381 cfm (10.8 m³/min) SL: 339 cfm (9.6 m³/min)
Airflow Rates (Heating)	H: 636 cfm (18.0 m³/min) M: 537 cfm (15.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.31 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.19 A - 0.17 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 36 W - 36 W Heating: 39 W - 39 W
Power Factor (Rated)	Cooling: 91.1% - 93.5% Heating: 93.8% - 92.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 41 / 36 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 41 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9 Specifications:

Brand	Daikin
Model	FTXV18AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	18 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 565 cfm (16.0 m³/min) M: 463 cfm (13.1 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.40 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.20 A - 0.18 A Heating: 0.29 A - 0.26 A
Power Consumption (Rated)	Cooling: 39 W - 39 W Heating: 54 W - 54 W
Power Factor (Rated)	Cooling: 93.8% - 92.5% Heating: 89.5% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 48 / 43 / 38 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 42 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9 Specifications:

Brand	Daikin
Model	FTXV24AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	24 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 629 cfm (17.8 m³/min) M: 501 cfm (14.2 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 466 cfm (13.2 m³/min) SL: 413 cfm (11.7 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.45 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.31 A - 0.28 A Heating: 0.30 A - 0.27 A
Power Consumption (Rated)	Cooling: 57 W - 57 W Heating: 55 W - 55 W
Power Factor (Rated)	Cooling: 88.4% - 88.7% Heating: 88.1% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 52 / 45 / 39 / 34 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 43 / 38 / 34 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 5/8 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

$4,620.00

Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own—

$4,620.00

Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own—

$4,620.00

Description

Daikin 2 - 3 - 4 Zone Mini Split System R32 - Design Your Own

Features:

World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F - 115°F
Heating Range 5°F - 60°F (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation

Daikin Advantage:

Individual Control: Each indoor unit can be operated independently to deliver air comfort only to rooms where needed.
Energy and Cost Savings: Advanced inverter and heat pump technologies achieve greater efficiency and energy-savings at lower costs.
Flexible Installation: Daikin compact split/multi-split air conditioners easily install to residences where space is limited.
Extensive Product Lineup: A broad array of models allows the perfect match of style and performance to any interior space.

Multi Zone Combination Chart:

Two Units	Three units	4 Units
7 + 7	7 + 7 + 7	7 + 7 + 7 + 07
7 + 9	7 + 7 + 9	7 + 7 + 7 + 09
7 + 12	7 + 7 + 12	7 + 7 + 7 + 12
7 + 15	7 + 7 + 15	7 + 7 + 7 + 15
7 + 18	7 + 7 + 18	7 + 7 + 7 + 18
7 + 24	7 + 7 + 24	7 + 7 + 7 + 24
9 + 9	7 + 9 + 9	7 + 7 + 9 + 9
9 + 12	7 + 9 + 12	7 + 7 + 9 + 12
9 + 15	7 + 9 + 15	7 + 7 + 9 + 15
9 + 18	7 + 9 + 18	7 + 9 + 9 + 18
9 +24	7 + 9 + 24	7 + 7 + 9 + 24
12 + 12	7 + 12 + 12	7 + 7 + 12 + 12
12 + 15	7 + 12 + 15	7 + 7 + 12 + 15
12 + 18	7 + 12 + 18	7 + 7 + 12 + 18
12 + 24	7 + 12 + 24	7 + 7 + 15 + 15
15 + 15	7 + 15 + 15	7 + 7 + 15 + 18
15 + 18	7 + 15 + 18	7 + 9 + 9 + 9
15 + 24	7 + 15 + 24	7 + 9 + 9 + 12
18 + 18	7 + 18 + 18	7 + 9 + 9 + 15
15 + 18	9 + 9 + 9	7 + 9 + 9 + 18
15 + 24	9 + 9 + 12	7 + 9 + 12 + 12
18 + 18	9 + 9 + 15	7 + 9 + 12 + 15
18 + 24	9 + 9 + 18	7 + 9 + 12 + 18
24 + 24	9 + 9 + 24	7 + 9 + 15 + 15
	9 + 12 + 12	7 + 12 + 12 + 12
	9 + 12 + 15	7 + 12 + 12 + 15
	9 + 12 + 18	9 + 9 + 9 + 9
	9 + 12 + 24	9 + 9 + 9 + 12
	9 + 15 + 15	9 + 9 + 9 + 15
	9 + 15 + 18	9 + 9 + 9 + 18
	9 + 15 + 24	9 + 9 + 12 + 12
	9 + 18 + 18	9 + 9 + 12 + 15
	12 + 12 + 12	9 + 9 + 12 + 18
	12 + 12 + 15	9 + 9 + 15 + 15
	12 + 12 + 18	9 + 12 + 12 + 12
	12 + 12 + 24	9 + 12 + 12 + 15
	12 + 15 + 15	12 + 12 + 12 + 12
	12 + 15 + 18
	12 + 18 + 18
	15 + 15 + 15
	15 + 15 + 18

Included Outdoor Unit:

1x Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9

Features:

Up to 48,000 BTU's - See Combination Capacity Chart here
Pre-Charged for 131.2 ft of line set length
World-renowned Daikin Inverter "Variable Speed" compressor technology
Space-saving design and precision temperature control for individual rooms
Cooling Range 14°F- 115°F (See full operating temperature details here)
Heating Range 5°F - 75°F (See full operating temperature details here) (Installing a drain pan heater (sold separately) will further extend the heating operation range to-13°F. The drain pan heater is available in the "Condenser Accessories" section above on this page.)
Quick and easy installation
Quiet operation
R-32 Refrigerant Type

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Optional Indoor Units:

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9

Features:

Comfort Airflow: The flow of air will be in the upward direction while in COOL and DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable airflow that will not come in direct contact with people.
Powerful Operation: POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.
On/Off Timer Operation: Timer functions are useful for automatically switching the air conditioner on or off in the morning or at night. You can also use the ON TIMER and OFF TIMER together.
COOL/HEAT mode lock: The COOL/HEAT mode lock requires initial programming during installation. The COOL/HEAT mode lock sets the unit forcibly to either COOL or HEAT operation. This function is convenient when you wish to set all indoor units connected to the multi system to the same operation mode.
Wireless LAN connection (Wi-Fi): The Wireless LAN connection adapter function requires the Daikin One Home App (available on IOS and Android) for connecting to the air conditioner and controlling it via your smartphone or tablet over your network. Daikin One Home Mobile App allows homeowners to remotely monitor and control their Daikin heating and cooling systems.
ECONO: ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
Auto Operation: To automatically select an appropriate temperature and operation mode.
Cool Operation: To lower the temperature.
Dry Operation: To lower the humidity
Heat Operation: To raise the temperature.
Fan Only Operation: To circulate air in the room.

Warranty:

12 Year Parts Limited Warranty with online registration. Click here for full warranty details

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9 Specifications:

Brand	Daikin
Model	4MXM36AVJU9
Warranty	12 Year limited parts warranty with online registration. Click here for full warranty details
BTU	36,000 BTU (Up to 48,000 BTU) - See Combination Capacity Chart here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V MCA: 24.1 MOP: 25.0
COP@5°F	W/W: 1.8
EER2 (Btu/W·h)	10.0
SEER2	20.0
HSPF2	9.5
Casing Color	Ivory White
Compressor	Type: Hermetically Sealed Swing Type Model: 2Y260BPAX1A Motor Output (W): 2,400W
Refrigerant Oil	Model: FW68DA Charge fl oz (L): 30.4 (0.9)
Refrigerant	Type: R-32 Charge lbs (kg): 4.9 (2.2) Pre-Charge: Pre-Charged for 131.2 ft of line set length
Airflow Rates	Cooling: 2,402 (cfm) / 68.0 (m³/min) Heating: 2,518 (cfm) / 71.3 (m³/min)
Fan	Type: Propeller Motor Output: 150 W Running Current(Cooling / Heating): 0.44 A / 0.49 A Power Consumption(Cooling / Heating): 90.9 W / 102.7 W
Starting Current	18.5 A
Dimensions (H × W × D)	29-1/2 × 34-1/4 × 12-5/8 inches (750 × 870 × 320 mm)
Packaged Dimensions (H × W × D)	32-1/16 × 40-5/16 × 16 inches (814 × 1,024 × 406 mm)
Weight (Mass)	142 lbs (65 kg)
Gross Weight (Gross Mass)	150 lbs (68 kg)
Sound Pressure Level	Cooling: 56 dB(A) Heating: 60 dB(A)
Piping Connection (inches)	Liquid: 1/4 x 4 Gas: 3/8 x 1, 1/2 x 2, 5/8 x 1 Drain: 5/8 inches
Heat Insulation	Both Liquid and Gas Pipes
No. of Wiring Connections	3 for Power Supply, 4 for Interunit Wiring (Including Ground Wiring)
Max. Interunit Piping Length	230 ft (70 mm) (for Total of Each Room) 82 ft (25mm) (for One Room)
Amount of Additional Charge oz/ft(g/m)	0.22 (20) (131-1/4 ft (40 m) or more)
Max. Installation Height Difference	49-1/4 ft (15 mm) (Between Indoor Unit and Outdoor Unit) 24-5/8 ft (7.5 mm) (Between Indoor Units)
Conditions Based on Cooling	Indoor ; 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB) Outdoor ; 95°FDB (35°CDB) / 75°FWB (24°CWB) Piping length: 25 ft (7.5 m)
Conditions Based on Heating	Indoor ; 70°FDB (21°CDB) / 60°FWB (15.6°CWB) Outdoor ; 47°FDB (8.3°CDB) / 43°FWB (6°CWB) Piping length: 25 ft (7.5 m)
Resources	Installation Manual General Safety Considerations Engineering Manual Engineering Manual 2 Dimensional Drawing Combination Capacity Chart Operating Temperature / Ambient Temp Warranty

Daikin AURORA 7,000 BTU Multi Zone Wall Mount Air Handler 230V - CTXV07AVJU9 Specifications:

Brand	Daikin
Model	CTXV07AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	7 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 332 cfm (9.4 m³/min) M: 268 cfm (7.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 332 cfm (9.4 m³/min) M: 279 cfm (7.9 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.11 A - 0.10 A Heating: 0.12 A - 0.11 A
Power Consumption (Rated)	Cooling: 20 W - 20 W Heating: 23 W - 23 W
Power Factor (Rated)	Cooling: 87.0% - 90.3% Heating: 94.0% - 91.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 40 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 39 / 34 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 9,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV09AVJU9 Specifications:

Brand	Daikin
Model	FTXV09AVJU9
Warranty	12 Years - See full warranty details here
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	9 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 381 cfm (10.8 m³/min) M: 272 cfm (7.7 m³/min) L: 230 cfm (6.5 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 385 cfm (10.9 m³/min) M: 304 cfm (8.6 m³/min) L: 230 cfm (6.5 m³/min) SL: 194 cfm (5.5 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.20 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.14 A - 0.13 A Heating: 0.13 A - 0.12 A
Power Consumption (Rated)	Cooling: 26 W - 26 W Heating: 25 W - 25 W
Power Factor (Rated)	Cooling: 90.4% - 86.2% Heating: 90.9% - 87.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 43 / 35 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 41 / 35 / 28 / 25 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 12,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV12AVJU9 Specifications:

Brand	Daikin
Model	FTXV12AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	12 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 392 cfm (11.1 m³/min) M: 293 cfm (8.3 m³/min) L: 226 cfm (6.4 m³/min) SL: 166 cfm (4.7 m³/min)
Airflow Rates (Heating)	H: 438 cfm (12.4 m³/min) M: 318 cfm (9.0 m³/min) L: 240 cfm (6.8 m³/min) SL: 205 cfm (5.8 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.23 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.17 A - 0.15 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 29 W - 29 W Heating: 35 W - 35 W
Power Factor (Rated)	Cooling: 81.3% - 84.7% Heating: 83.7% - 82.7%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-1/4 × 30-5/16 × 8-3/4 inches (286 × 770 × 223 mm)
Packaged Dimensions (H × W × D)	12-5/8 × 32-11/16 × 14-3/16 inches (320 × 830 × 360 mm)
Weight (Mass)	19 lbs (9 kg)
Gross Weight (Gross Mass)	24 lbs (11 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 37 / 31 / 24 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 37 / 30 / 26 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 3/8 inches Drain: 5/8 inches
Drawing No.	3D153215A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Warranty

Daikin AURORA 15,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV15AVJU9 Specifications:

Brand	Daikin
Model	FTXV15AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	15 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 540 cfm (15.3 m³/min) M: 470 cfm (13.3 m³/min) L: 381 cfm (10.8 m³/min) SL: 339 cfm (9.6 m³/min)
Airflow Rates (Heating)	H: 636 cfm (18.0 m³/min) M: 537 cfm (15.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.31 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.19 A - 0.17 A Heating: 0.20 A - 0.18 A
Power Consumption (Rated)	Cooling: 36 W - 36 W Heating: 39 W - 39 W
Power Factor (Rated)	Cooling: 91.1% - 93.5% Heating: 93.8% - 92.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 45 / 41 / 36 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 45 / 41 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 18,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV18AVJU9 Specifications:

Brand	Daikin
Model	FTXV18AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	18 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 565 cfm (16.0 m³/min) M: 463 cfm (13.1 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 452 cfm (12.8 m³/min) SL: 388 cfm (11.0 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.40 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.20 A - 0.18 A Heating: 0.29 A - 0.26 A
Power Consumption (Rated)	Cooling: 39 W - 39 W Heating: 54 W - 54 W
Power Factor (Rated)	Cooling: 93.8% - 92.5% Heating: 89.5% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 48 / 43 / 38 / 33 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 42 / 37 / 33 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 1/2 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty

Daikin AURORA 24,000 BTU Multi Zone Wall Mount Air Handler 230V - FTXV24AVJU9 Specifications:

Brand	Daikin
Model	FTXV24AVJU9
Warranty	12 Years - See full warranty details here
Wi-Fi	Yes
Power Supply	Phase: 1 Hz, V: 60 Hz, 208 - 230 V
Rated Capacity	24 kBtu/h Class
Front Panel Color (Munsell No.)	White (N9.5)
Airflow Rates (Cooling)	H: 629 cfm (17.8 m³/min) M: 501 cfm (14.2 m³/min) L: 378 cfm (10.7 m³/min) SL: 335 cfm (9.5 m³/min)
Airflow Rates (Heating)	H: 717 cfm (20.3 m³/min) M: 572 cfm (16.2 m³/min) L: 466 cfm (13.2 m³/min) SL: 413 cfm (11.7 m³/min)
Fan	Type: Cross Flow Fan Drive Input: 0.45 A Speed: 5 Steps, Quiet, Auto
Air Direction Control	Right, Left, Horizontal, Downward
Air Filter	Removable, Washable
Running Current (Rated)	Cooling: 0.31 A - 0.28 A Heating: 0.30 A - 0.27 A
Power Consumption (Rated)	Cooling: 57 W - 57 W Heating: 55 W - 55 W
Power Factor (Rated)	Cooling: 88.4% - 88.7% Heating: 88.1% - 89.3%
Temperature Control	Microcomputer Control
Dimensions (H × W × D)	11-5/8 × 39 × 10-3/8 inches (295 × 990 × 263 mm)
Packaged Dimensions (H × W × D)	15-3/16 × 43-3/8 × 15-5/16 inches (386 × 1,102 × 389 mm)
Weight (Mass)	27 lbs (13 kg)
Gross Weight (Gross Mass)	37 lbs (17 kg)
Sound Pressure Level Cooling	H / M / L / SL: 52 / 45 / 39 / 34 dB(A)
Sound Pressure Level Heating	H / M / L / SL: 49 / 43 / 38 / 34 dB(A)
Heat Insulation	Both Liquid and Gas Pipes
Piping Connection	Liquid: 1/4 inches Gas: 5/8 inches Drain: 5/8 inches
Drawing No.	3D153178A
Note	SL: The quiet fan level of the airflow rate setting
Resources	Specifications Operation Manual Installation Guide/General Safety Considerations Submittal Drawing Warranty
