BigBattery 24V 3X HUSKY 2 KIT – Victron

This 24V 15.36kWh LiFePO4 3x HUSKY 2 Kit is the latest and greatest from BigBattery, providing a robust solution, with unmatched reliability and efficiency, for any off-grid power system, emergency backup, or mobile power setup in your RV or camper van.

The HUSKY 2 is one of our most energy-dense 24V solutions to date, designed to provide ultimate peace of mind during operation, whether that’s in your home during a blackout, or while out boondocking in the countryside. From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage, and boasts comprehensive BMS protections against Over/Under Voltage and Over Current statuses, as well as a thermal management system that affords a generous operating temperature range.

The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated, vibration-resistant casing, and equipped with an advanced BMS capable of auto-balancing cells and full CANBus & RS485 communication protocols, but it also boasts a self-heating function which supports cold weather charging, ensuring you have reliable power through every season. But that’s not all.

We pair the 24V HUSKY 2 with a cutting-edge MultiPlus-II inverter and charger from Victron Energy. This state-of-the-art inverter boasts all the advanced features of Victron’s flagship MultiPlus models, but now includes external current sensors which extend this inverter’s PowerControl and PowerAssist functions to up to 100A. The MultiPlus-II comes equipped with an integrated pure copper transformer, advanced protections, as well as an LED indicator display, but with full WiFi remote monitoring capabilities, you’re able to get in-depth updates on the status and performance of your power at a moment’s notice.

Equipped with the 24V HUSKY 2, you’ll be saving space and weight no matter the application, and you can rest easy knowing you’re powered and prepared day in and day out. Shop the all-new 24V HUSKY 2 & HUSKY 2 Kits today.

Warranty:

• 12 Year Warranty (Applied to BigBattery Batteries Only)

What's Included:

• 3 × 24V HUSKY 2 - LiFePO4 - 200Ah - 5.12kWh

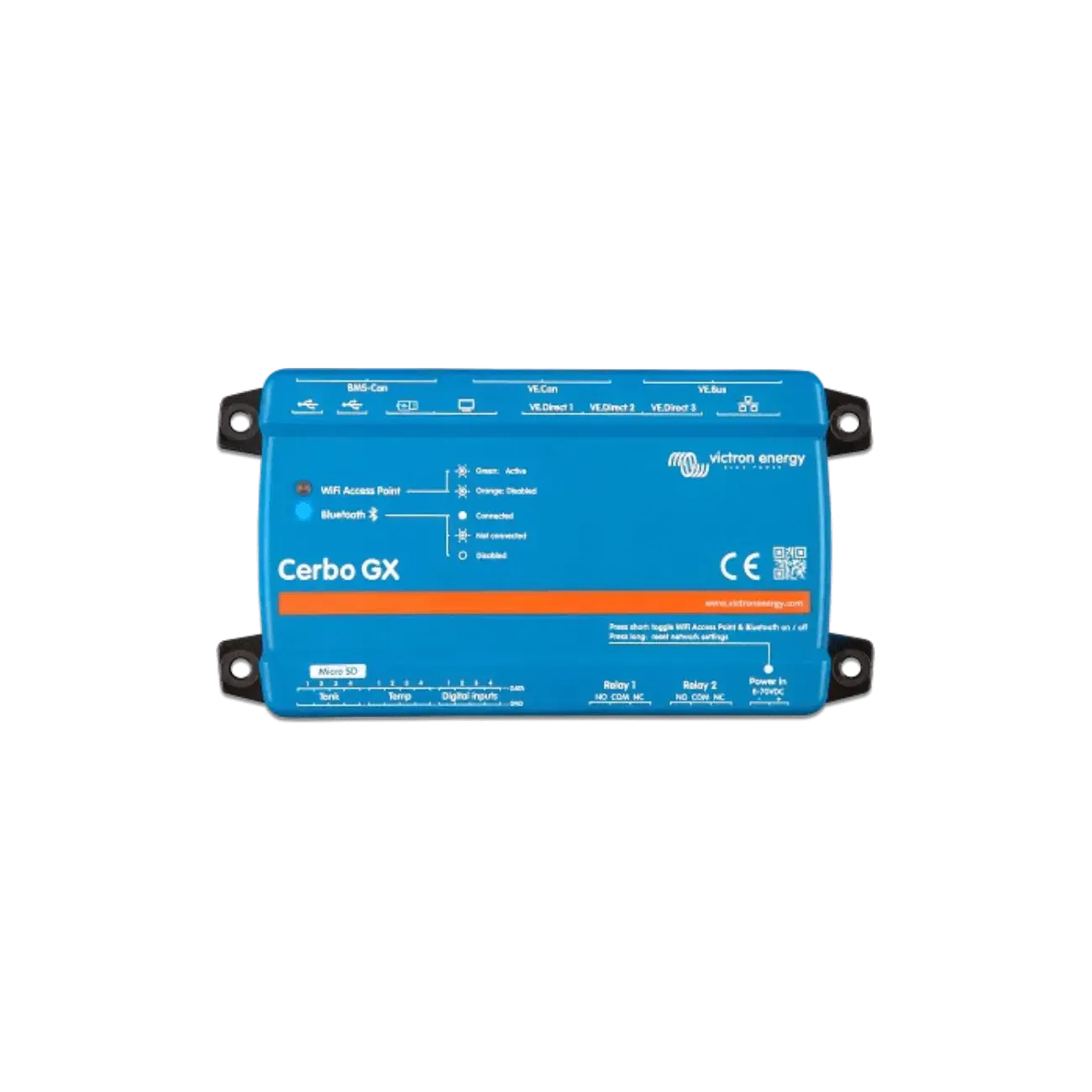

• 1 × Victron Cerbo GX

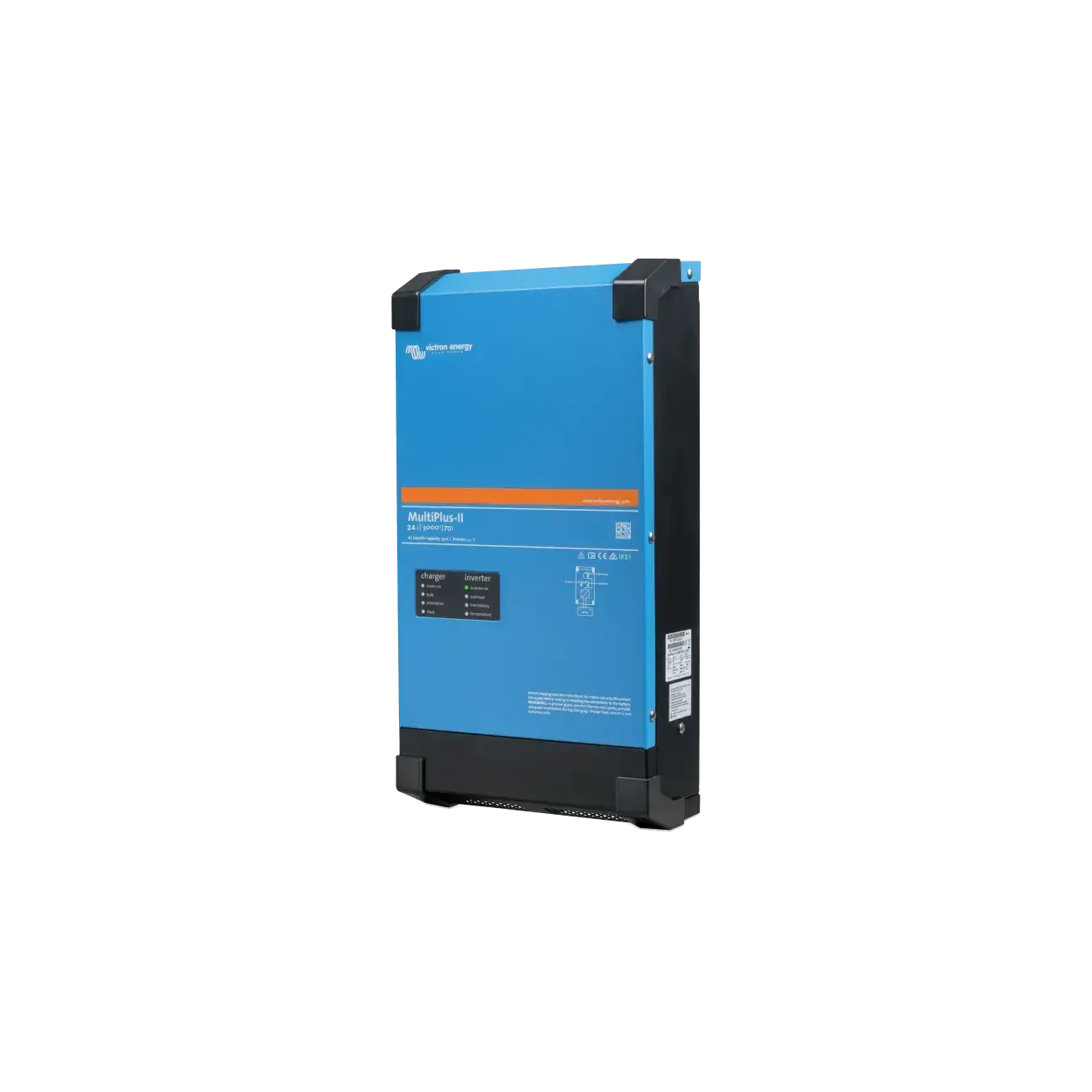

• 1 × 24V MultiPlus-II 120V Inverter/Charger

• 2 × Parallel Comm Cable

• 2 × 4AWG (Black and Red) 21 inches Ring to Ring Terminal Cable

• 1 × 4AWG 3FT Ring to Ring Terminal Cable

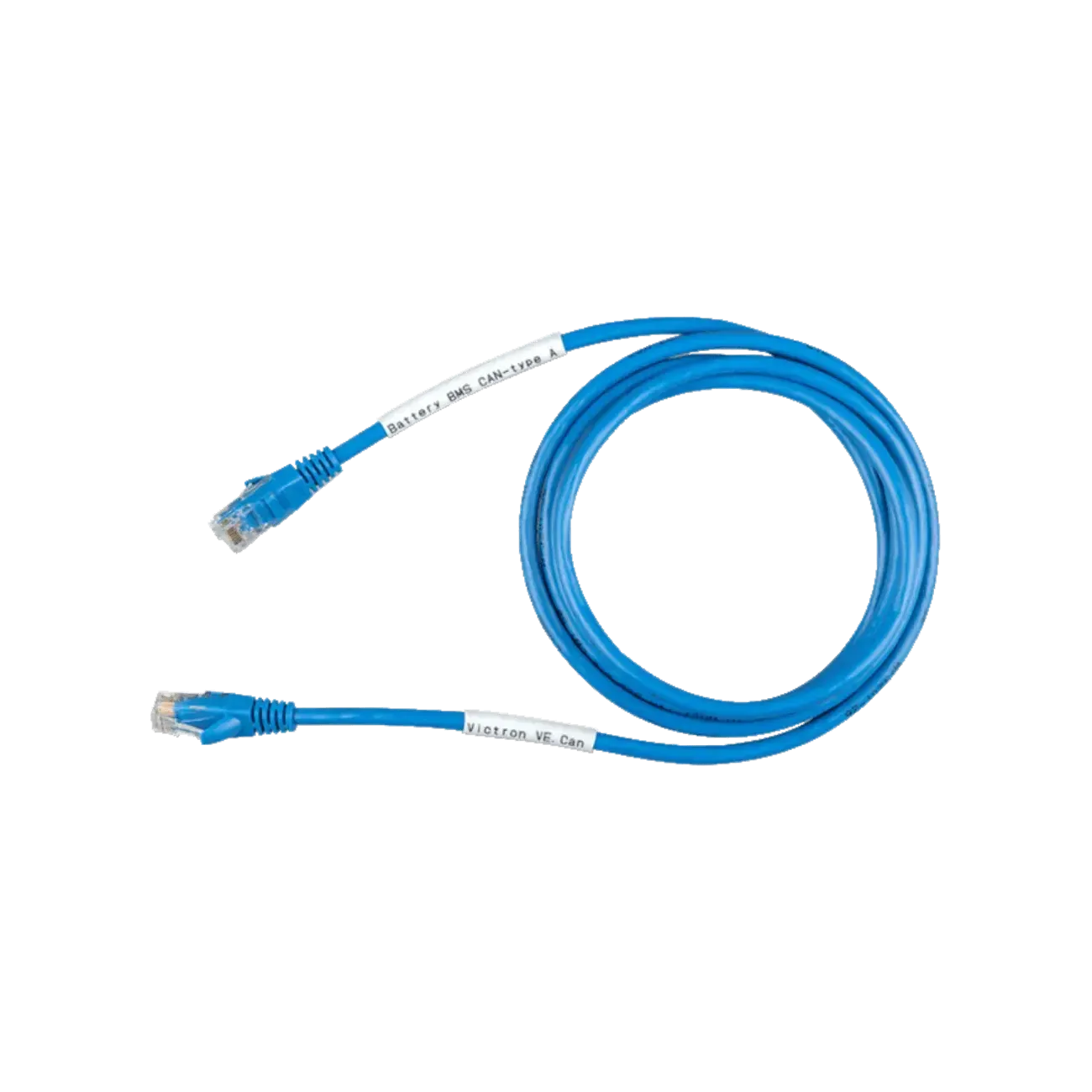

• 1 × Victron COMM Cable


Benefits:

• IP65 Protection Rating

• Automatic Self-Heating
• CANBus & RS485 Communications
• Simple Installation


Designed for 24V Applications:

• Lead Acid Replacement
• Class A, B, & C RVs
• Camper Vans

• Tow-Behind Trailers
• Commercial Vehicles
• Food Trucks

• Emergency Power
• Mobile Backup


Video:

BigBattery HUSKY 2 - LiFePO4 Battery | Golf Cart, RV, and Van Power Solutions

24V HUSKY 2 - Product Unboxing

Single Battery Tech Specs

Brand	BigBattery
SKU	FHSKY-24051-G2
System Voltage	24V
Nominal Voltage	25.6V
Chemistry	LiFePO4
kWh Capacity	5.12kWh
Ah Capacity	200Ah
Charging Voltage Range	27.8 - 28V
Max Charge Voltage	29.2V
Operating Voltage Range	24 – 28.8V
Suggested Low Voltage Cutoff	24 – 25.4V
BMS Cutoff Range	21 – 23.5V
Cell Configuration	8S
Max Continuous Discharge Current	200A
Max Continuous Power	5120W
Max Discharge Peak Current	300A (Max 5 seconds)
Max Charge Current	150A
Charge Temperature Range	-4°F - 113°F (-20°C - 45°C)
Discharge Temperature Range	-4°F - 131°F (-20°C - 55°C)
Optimal Discharge Temperature Range	59°F - 95°F (15°C - 35°C)
Storage Temperature Range	-4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight	95 lb (43.1 kg)
Depth	12.6 in (320 mm)
Width	18.1 in (460 mm)
Height	9.8 in (249 mm)
Max Connections	Up to (16) Parallel
Protection Rating	IP65 / NEMA 4X
Communications	CANBus / RS485
Self-Heating	Yes
Spec Sheet	Spec Sheet
User Manual	User Manual
Safety Data Sheet	Safety Data Sheet
CE Certificate	CE Certificate
UN38.3 Certificate	UN38.3 Certificate



Inverter Specs

Brand	Victron
SKU	INV016
Battery Voltage	24VDC
INVERTER OUTPUT
Rated Power	3000 VA / 2400 W
Peak Power	5500 W
Parallel Capacity	Yes
Nominal Output Voltage RMS	N/A
Output Frequency	60 Hz ± 0.1%
AC Voltage Regulation	120 VAC ± 2%
Inverter Efficiency (Peak)	94%
Waveform	Pure Sine Wave
Transfer Time	N/A
AC INPUT
Voltage	120VAC
Selectable Voltage Range	90-140 VAC
Frequency Range (Auto-Sensing)	45 – 65 Hz
Max. Charging Current	70A
DIMENSIONS
Weight	42 lbs
Depth	5.8 in
Width	10.9 in
Height	21.1 in
Spec Sheet	Spec Sheet
