Aspen CE48D44210L004 DX-Treme CE Series Cased Multi-Position Evaporator Coil - 4 Ton
Aspen CE48D44210L004 DX-Treme CE Series Cased Multi-Position Evaporator Coil - 4 Ton
Standard Features:
- Rifled copper tubing, enhanced aluminum fins.
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
- Left- or right-hand refrigerant and plumbing connections.
- Liquid line - 3/8” ODS, suction line - 3/4” ODS on 1-1/2- 3 ton & 7/8” ODS on 3-1/2 - 5 ton.
- Externally mounted flowrater body with Schrader valve for hiss-testing.
- Heavy duty plastic upflow drains pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
- Embossed galvanized cabinets standard. Cabinets feature furnace connectors (patent pending).
- Upflow, horizontal right, or horizontal left without field modification. Downflow applications require plate kit, included.
- Split access doors in front for easy service.
- Fully insulated cabinets with faced insulation.
- Ten-year limited warranty.
- AHRI certifiable with all brands of A/C and heat pump systems.
- ETL listed for use with R22 and R410a when proper metering device is used.

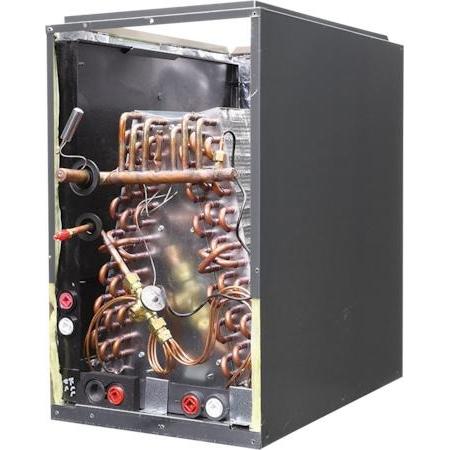

Note: Unit shown with service panels removed. Representative drawing only. Some models may vary in appearance. Duct opening dimensions can be ascertained by subtracting 1-½ for top opening width/ depth, ¾” for bottom opening.
Specifications:
| Brand | Aspen |
| Model | CE48D44210L004 |
| Configuration | Multi-Position |
| Warranty | 10 Years Parts Warranty |
| Refrigerant | R-22 or R-410A |
| Piston Size |
R-22: 0.084 R-410A: 0.080 |
| Cabinet Width |
Min Width: 17" Max Width: 26-1/2" |
| Cabinet Depth | 21-1/2" |
| Cabinet Height | 30" |
| Tonnage | 4 Tons |
| Weight | 100 lbs |
| Resources |
