Air-Con Sky Pro 12000 BTU Concealed Duct Mini Split Air Conditioner 19 SEER
Air-Con Sky Pro 12000 BTU Concealed Duct Mini Split Air Conditioner 19 SEER
Heat & Cool - Enjoy year round comfort with the ability to heat or cool your room or space.
Energy Savings - With a SEER up to 19 rating**, you can save money on your monthly electricity bill!
Note: Licensed HVAC technician required for proper installation and maintenance.
Package includes the following:

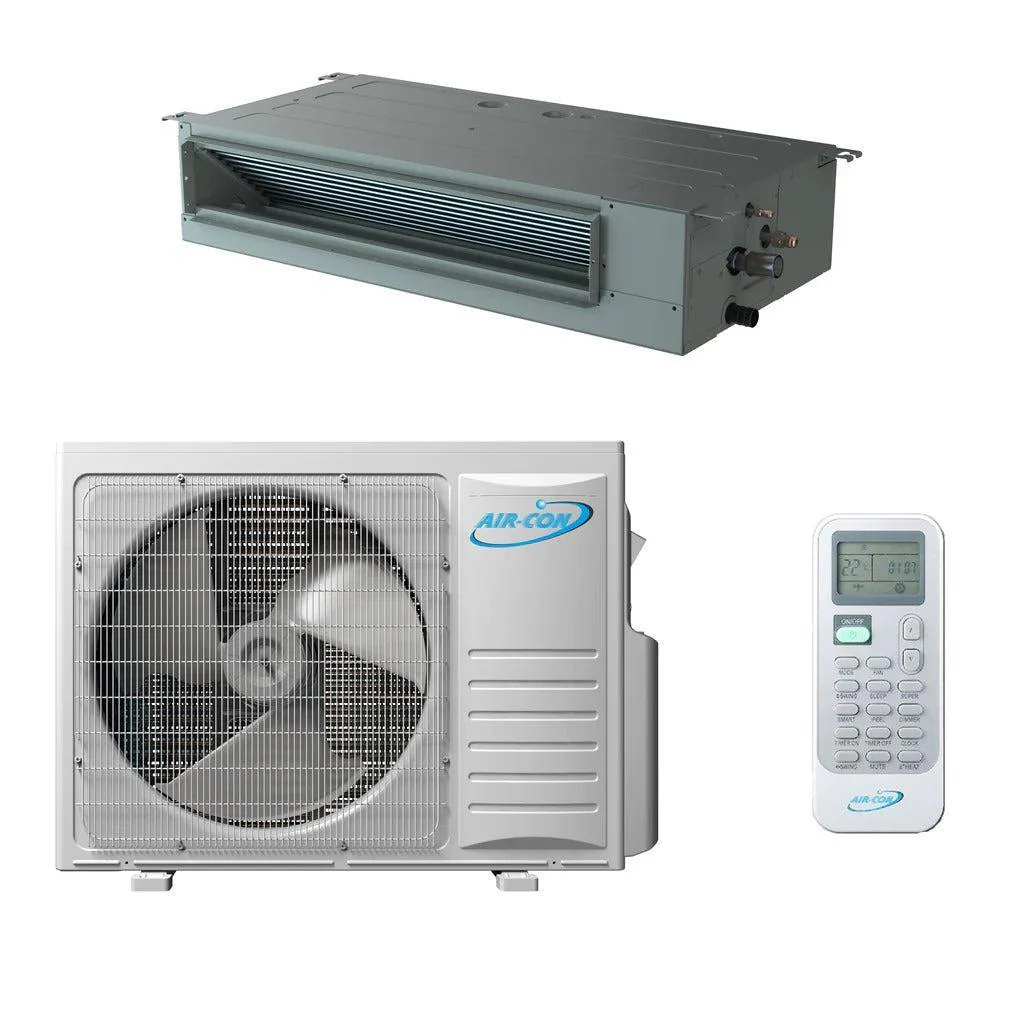

- Indoor & Outdoor Unit

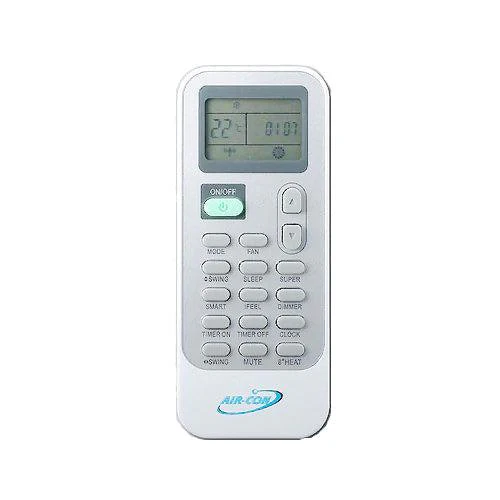

- Remote Control
*Air-Con units compatible with Cielo Breez remote. Sold separately.
** This unit's AHRI Reference Number is 205129517.
Features:
Key Features:
- 24hr Timer
- Wired Controller
- Auto Restart
- Cooling and Heating up to 5° F
- 220v / 1ph / 60Hz
Technology:
Tech & Specifications
Specifications
| Brand | Air-Con International |
| Model | ASLEK4H4S12 / ASLCI4H4S12 |
| Voltage/ Frequency/ Phase | 208/230V - 60Hz - 1 phase |
| Cooling Capacity | 12000 |
| Heating Capacity | 12000 |
| Watts | 1091 |
| Amperage | 4.8 |
| SEER | 19 |
| HSPF | 10 |
| Operating Ambient Temperature | 5° F Cooling / 5° F Heating |
| Indoor Unit Dimensions | 35-7/8" x 7-1/2" x 17-5/8" |
| Outdoor Unit Dimensions | 31-7/8" x 22-7/8" x 11" |
| Lineset Size | 1/4" & 3/8" |
Warranty Details
5 Year Parts Warranty, 7 Year Compressor Warranty
Information & Guides
Sky Pro Series Condenser Installation Guide
Sky Pro Series Air Handler Installation Guide
