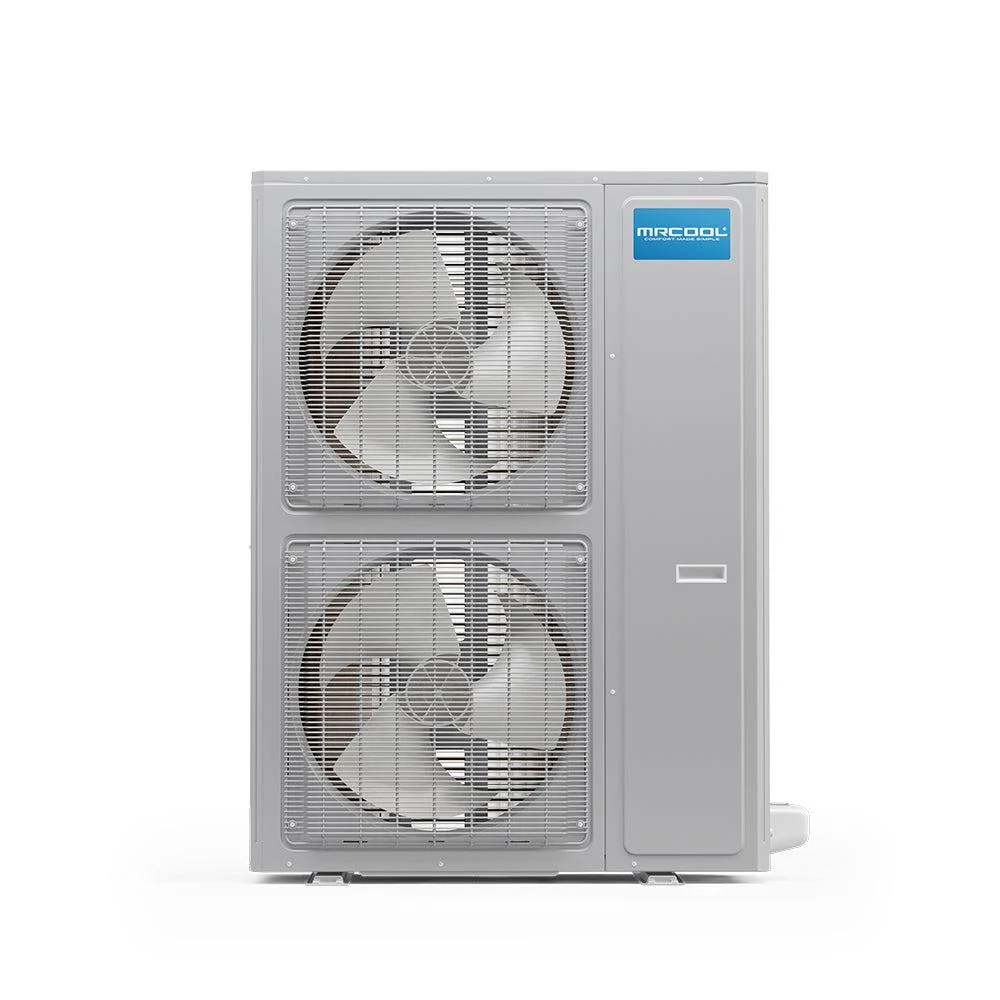

4 to 5 Ton 18 SEER MRCOOL® Universal Central Air Conditioner Condenser - MDUCO18048060
4 to 5 Ton 18 SEER MRCOOL® Universal Central Air Conditioner Condenser - MDUCO18048060
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.
Features:
- Up to 18 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac Quick Connect Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
Specifications:
| BRAND | MRCOOL |
| MODEL | MDUO18048060 |
| UPC | 810512032938 |
| SERIES | Universal Series 4 / 5 Ton Condenser |
| UNIT TYPE | Universal Series Heat Pump |
| SEER | up to 18 |
| SEER2 |
17 |
| MAX SEER |
18 |
| EER | 11 |
| EER2 | 11 |
| HSPF | 10.5 |
| HSPF2 | 9 |
| CFM | 4700 |
| TONNAGE | 4-5 |
|
COOLING CAPACITY (BTU) |
48000 |
|
HEATING CAPACITY (BTU) |
48000 |
|
VOLTAGE |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
|
MAX FUSE BREAKER (A) |
45 |
|
MIN CIRCUIT AMPACITY (A) |
35 |
| COLOR | Gray |
|
COLOR FAMILY |
Gray |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
220.48 |
|
DECIBEL RATING (DBA) |
58 |
| INVERTER | DC |
|
MIN AMBIENT COOL (F) |
5 ~ 129.2 |
|
MIN AMBIENT HEAT (F) |
-22 ~ 75.2 |
| LINESET INCLUDED |
No |
| LINE SET LENGTH |
15, 25, 35, 50 |
|
MAX LINESET LENGTH (FT) |
164 / 5 |
| LINESET FITTING TYPE |
Pre-Flared/Sweat & Quick Connect |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Inverter Rotary |
| CONDENSER FAN MOTOR TYPE |
Direct Drive |
| METERING DEVICE |
EEV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
Yes |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 Year Registered Limited Warranty |
|
BASE WARRANTY |
5 Year Limited Parts Warranty |
|
BASE PARTS WARRANTY |
5 year limited extended parts warranty |
| HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
|
NET DEPTH (IN) |
14.50 |
|
NET HEIGHT (IN) |
53.75 |
|
NET WIDTH (IN) |
39.38 |
|
NET WEIGHT (LBS) |
308.70 |
|
GROSS DEPTH (IN) |
19.38 |
|
GROSS HEIGHT (IN) |
59.25 |
|
GROSS WIDTH (IN) |
45.38 |
|
GROSS WEIGHT (LBS) |
337 |
| FREIGHT CLASS |
92.5 |
