3 - Zone - 24,000 BTU 21 SEER2 Daikin MXM Series Wall Mounted Ductless Mini Split Heat Pump Air Conditioner System 9K + 15K + 15K - 230V | R32 | Wi-Fi Enabled

Daikin MXM 3-Zone Ductless Mini-Split Heat Pump (24,000 BTU • 21 SEER2 | 230V | R-32).

Daikin MXM multi-zone ductless systems bring room-by-room comfort to multiple spaces using one outdoor unit-ideal for renovations, additions, and homes without ductwork.

• Connect 2-4 indoor units to one outdoor unit for true zone control and a cleaner exterior footprint.
• Inverter (variable-speed) compressor adapts output to match demand for efficient, consistent comfort.
• Quiet, space-saving side-discharge outdoor unit design.
• Cooling range 14°F-115°F and heating range 5°F-60°F (varies by setup).
• Titanium Apatite Photocatalytic Air Purifying Filter and washable filters for everyday indoor-air support.
• Built-in Wi-Fi for app-based comfort control.
• R-32 refrigerant supports a lower GWP approach compared to R-410A.

Model numbers (SKU):

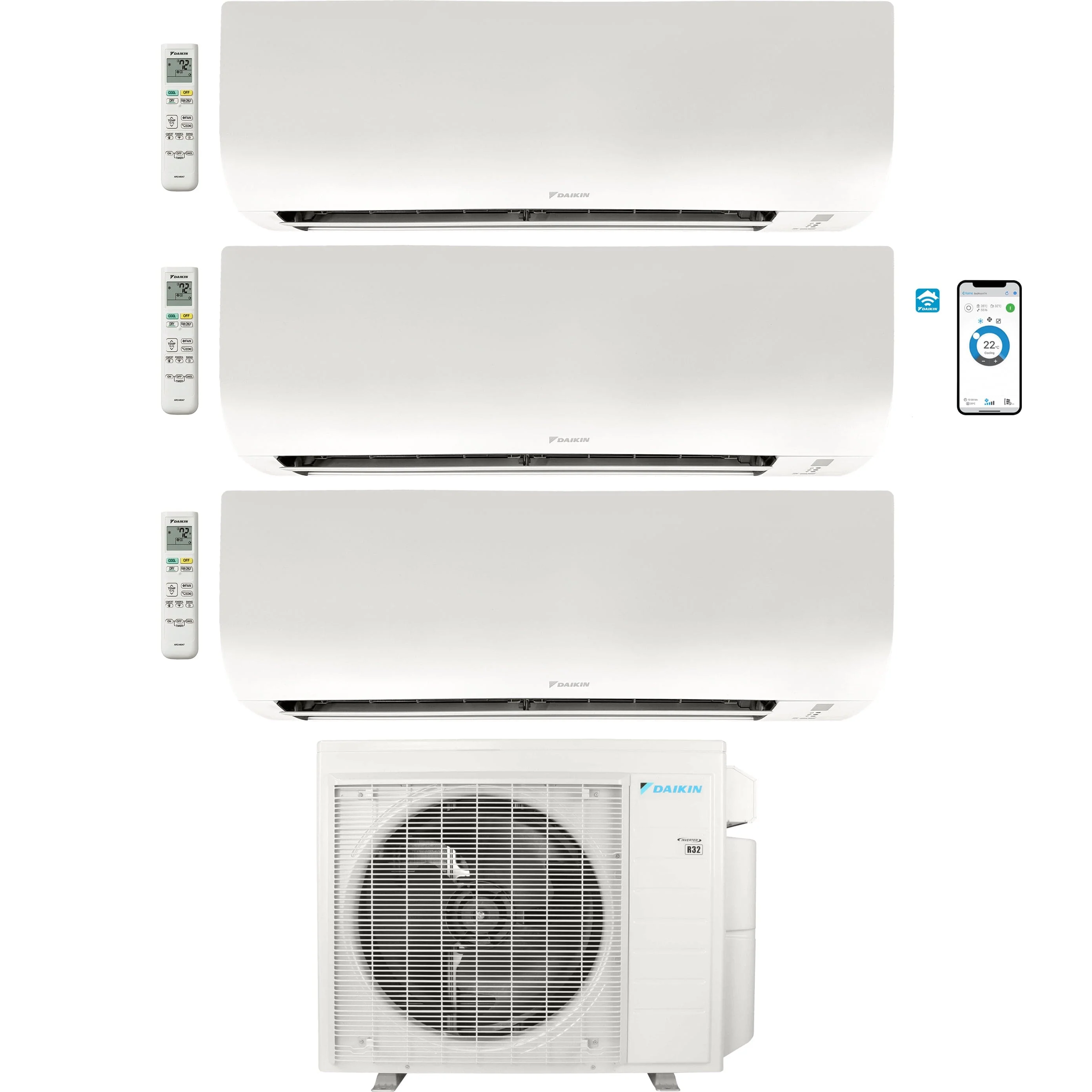

• Outdoor unit: 3MXM24AVJU9
• Indoor unit(s): FTXV09AVJU9, FTXV15AVJU9
• Indoor capacity mix: 9K + 15K + 15K

Key specifications:

• Zones: 3
• Nominal system capacity: 24,000 BTU
• Efficiency: 21 SEER2
• Electrical: 230V
• Refrigerant: R-32
• Outdoor unit rated capacity (cool/heat): 23,000 / 24,000 BTU
• Outdoor unit ratings (SEER2/EER2/HSPF2): 21 / 12 / 10
• Operating range (cool/heat): 14°F to 115°F / 5°F to 60°F

Warranty: 12-Year Parts Limited Warranty with online registration within 60 days of installation (terms vary by location). Always refer to the complete warranty certificate for full terms, limitations, and registration requirements.

Perfecting the Air: inverter-driven comfort, smart control, and low-GWP R-32 refrigerant work together to reduce energy use while creating a home that feels just right.
