3 Ton 17.6 SEER2 ACiQ High Efficiency Wall-Mount Heat Pump Split System | Inverter
3 Ton 17.6 SEER2 ACiQ High Efficiency Wall-Mount Heat Pump Split System | Inverter
This ACIQ High Efficiency system boasts a heat pump equipped with inverter technology, alongside a wall-mounted air handler sporting a compact design, perfect for multi-tenant applications. Compatible with optional 3 kW, 5k kW, 8kW or10kW electric backup heat strips.
ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter
Overview

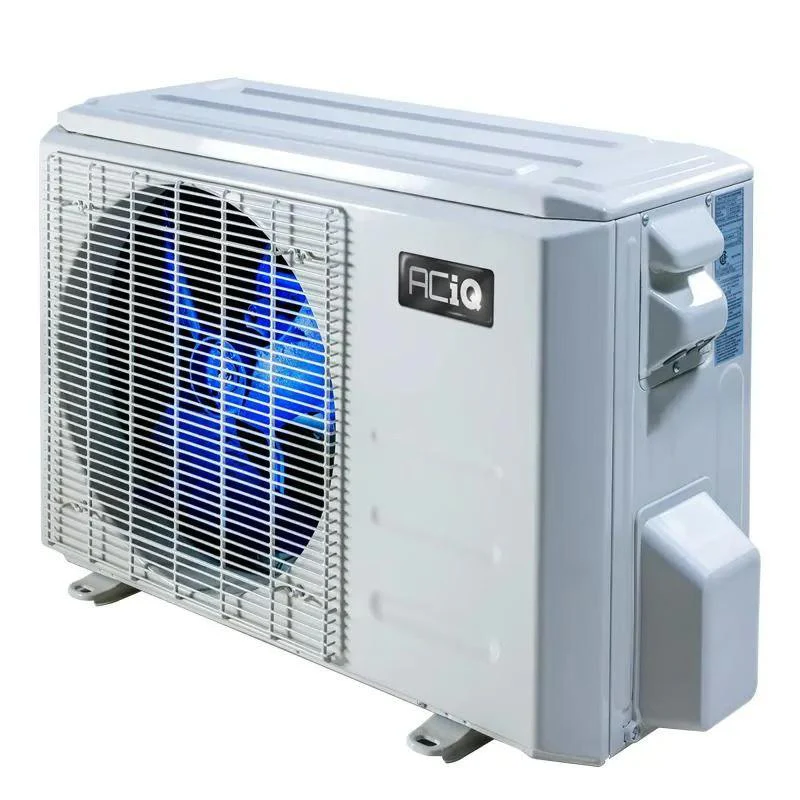

Inverter Heat Pump - The ACiQ-36-EHPB 3-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-36-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Quick Facts:
- Variable output based on demand
- Inverter heat pump system for ducted applications
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Reliable heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating for longevity
- Quiet operation, even under high workloads

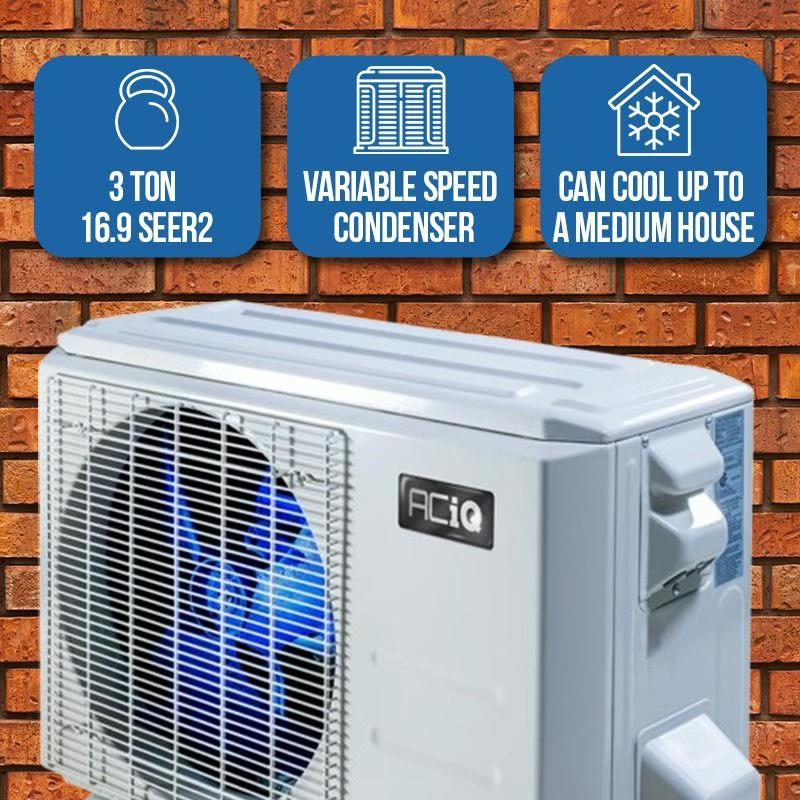

36,000 BTU, 16.9 SEER2
Boasting an efficiency rating of 16.9 SEER2, the ACiQ-36-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
3 Ton Wall Mounted ACiQ Air Handler
The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
Features:
- Digital EEV
- Wired smart thermostat with WiFi included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow-only configuration
- Manufactured Home and mobile home approved
- Designed to optimize performance from ACIQ inverter heat pumps and air conditioners
Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.
NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
Condenser Specifications:
| Brand | ACiQ |
| Model Number |
ACiQ-36-EHPB |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 161.160000 |
| Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| HSPF | 9.1 |
| HSPF2 | 8.2 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Maximum CFM | 2235 |
| Decibel Level (dBA) | 60 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| EER | 10.4 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 24 Amps |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating | 5～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Zone Compatibility | Single Zone |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Proposition 65 Warning | Yes |
Air Handler Specifications
| Brand | ACiQ |
| SKU | ACIQ-36W-WM |
| Weight | 109.000000 |
| Additional Information | 20" x 20" x 1" Filter Size |
| Cooling BTU | 36,000 BTU |
| Blower Motor | Multi Speed Direct Drive Motor |
| Maximum CFM | 118.24 |
| Decibel Level (dBA) | 55 |
| Electric Heat | Electric Heat Strip |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208-230 Single Phase 60 Hz |
| Tonnage | 3 Ton |
| Fuel Type | Electric |
| Height | 40" |
| Width | 22" |
| Depth | 19" |
| Warranty | 7 year parts with online registration |
| Resources | |
| Safety Information | Proposition 65 Warning |
