24,000 BTU 23 SEER ACiQ Single Zone Floor Mount Mini Split System | Extreme Series

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

• Maximum Performance at an Affordable Cost
• Heating & Cooling
• Ductless Solution perfect for 250-400 sq ft Room
• Efficient Cooling from -22°F - 122°F Outdoor Temperatures
• Efficient Heating from -22°F - 75°F Outdoor Temperatures
• Single Zone/Room Compatible



24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

Overview

The ACiQ Extreme series showcases Extreme Heat - hyper heat technology, providing continuous heating capabilities down to -22 degrees outside. Achieve optimal efficiency for both cooling and heating your space with its high SEER2 and high HSPF ratings.

Quick Facts

• Delivers maximum performance at an affordable cost
• Perfectly suited for spaces of approximately 1,000 - 1,500 square feet (varies depending on climate)
• Efficient cooling from -22°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Equipped with a gold fin condenser and full-protection coating
• Operates quietly even under heavy workloads

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

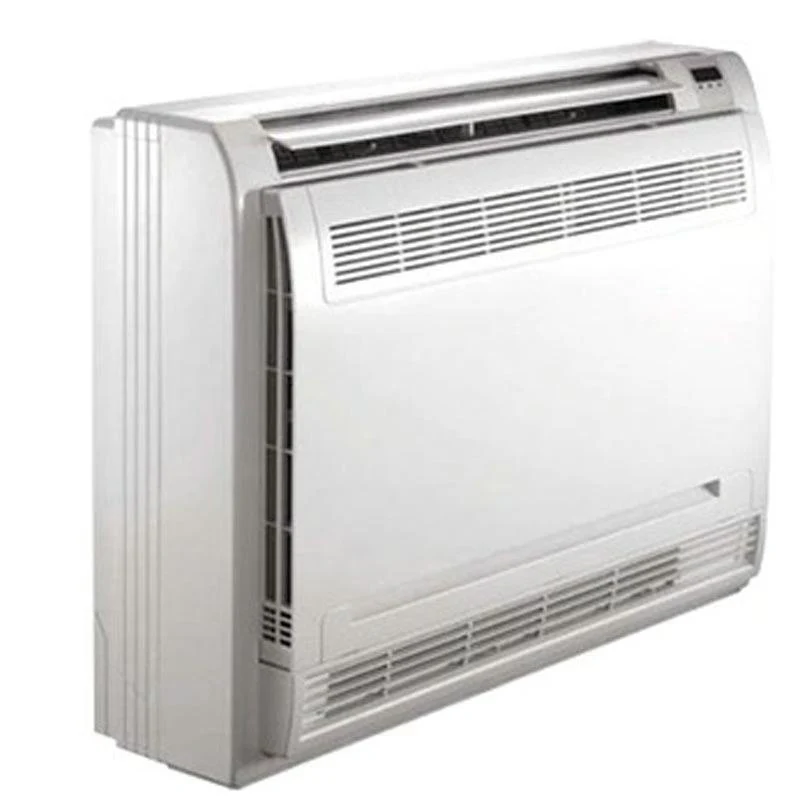

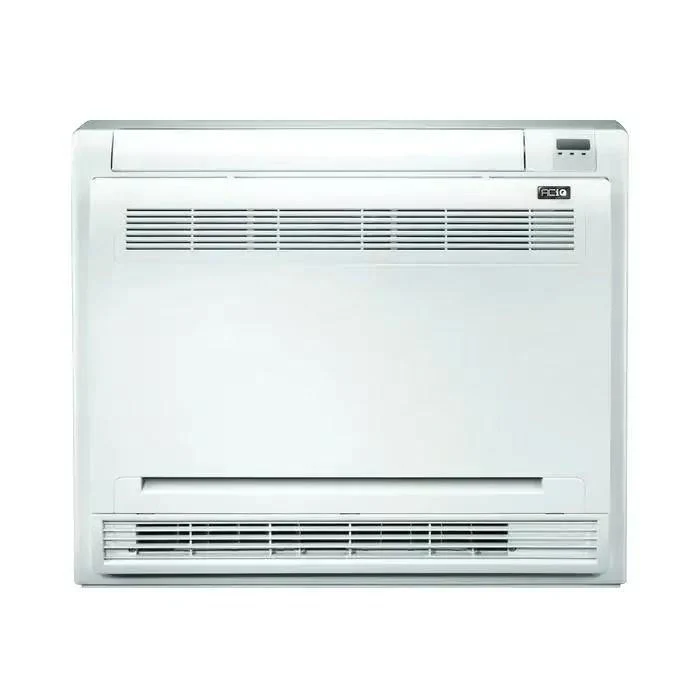

24,000 BTU Floor or Ceiling Mounted ACiQ Mini Split Air Handler| R454B

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

The ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB creatively solve various installation issues.

Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air handlers impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommodate all geometry angles, allowing the system to touch the ceiling or hang several feet below it

Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposite edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room. Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.

Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

What's Included:

• 1x 24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

• 1x 24,000 BTU Floor or Ceiling Mounted ACiQ Mini Split Air Handler | R454B


Condenser Specifications:

SKU	ACIQ-24ZPL-HP230C
Weight	141.310000
AHRI Certificate Number	207825544
Manufacturer	ACiQ
Product Features	Low Ambient Heating
HSPF2	13.5
Cooling BTU	24,000 BTU
Heating BTU	29,000 BTU
Decibel Level (dBA)	61.5
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R454B
SEER2	21
Electrical	208/230V | 1 Phase | 60 Hz
Max Breaker Size	35A
Min. Breaker Size	25A
Tonnage	2 Ton
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Min/Max Outdoor Temp for Heating	-22~75 F / -30~24 C
Min/Max Outdoor Temp for Cooling	-22~122 F / -30~50 C
Zone Compatibility	Single Zone
Operating Mode	Heating/Cooling
Certification	Energy Star, NEEP, UL AHRI
Height	31.89"
Width	37.24"
Depth	16.14"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal with 24K Ceiling Cassette Submittal with 24k Concealed Duct Submittal with 24K Floor Mount Submittal with 24k Wall Mount
Safety Information	PROPOSITION 65 WARNING



Air Handler Specifications:

SKU	ACIQ-24FM-HH-MD
Weight	72.000000
Manufacturer	ACiQ
Controller	Wireless Included
Cooling BTU	22,000 BTU
Heating BTU	26,000 BTU
Maximum CFM	735.8
Decibel Level (dBA)	As low as 29
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R454B
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60Hz
Electric Phase Filter	Single Phase
BTU/Tonnage	24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split Type	Floor Mounted
Zone Compatibility	Multi Zone
Height	9.25"
Width	42.05"
Depth	26.57"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal Installation Manual Owner's Manual Remote Manual Service Manual Extended Performance Table Warranty Information
Safety Information	PROPOSITION 65 WARNING
