24,000 BTU 21.5 SEER ACiQ Extreme Series Single Zone Wall Mount Mini Split System - WiFi Enabled - R454B

The ACiQ Platinum series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 21 and HSPF as high as 12 you can experience the high performance and maximum efficiency that usually costs much more.

• Maximum Performance at an Affordable Cost

• Heating & Cooling

• Ductless Solution for a 1,000-1,500 sq ft Room/Zone

• Efficient Cooling from -22°F - 122°F Outdoor Temperatures

• Efficient Heating from -22°F - 75°F Outdoor Temperatures

• Single Zone/Room Compatible

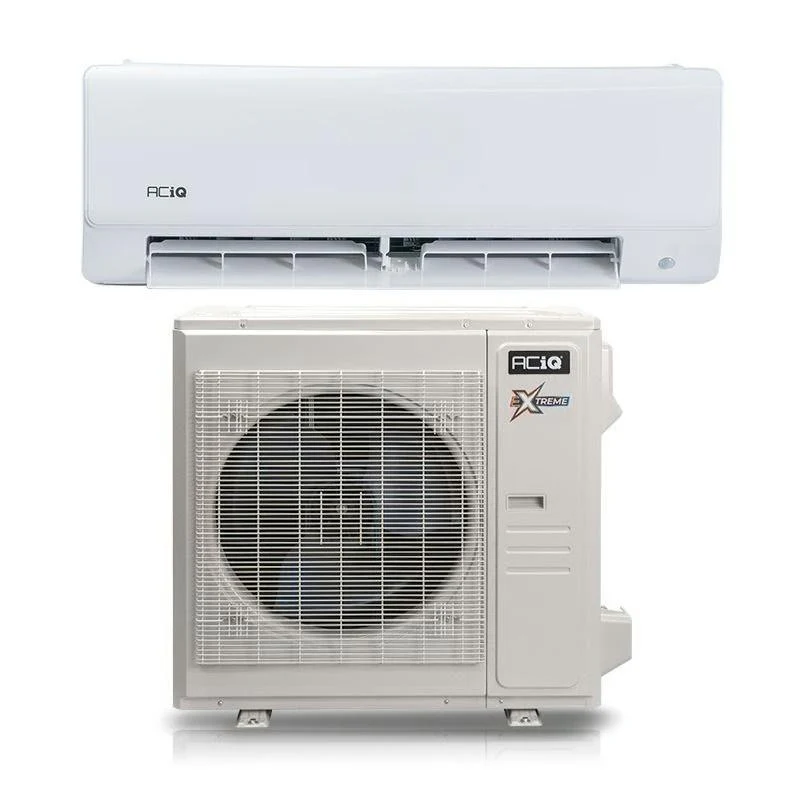

What's Included:

• 1x 24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

• 1x 24,000 BTU ACiQ Platinum Multi Zone Air Handler w/ WiFi | R454B


Condenser Specifications:

SKU	ACIQ-24ZPL-HP230C
Weight	141.310000
AHRI Certificate Number	207825544
Manufacturer	ACiQ
Product Features	Low Ambient Heating
HSPF2	13.5
Cooling BTU	24,000 BTU
Heating BTU	29,000 BTU
Decibel Level (dBA)	61.5
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R454B
SEER2	21
Electrical	208/230V | 1 Phase | 60 Hz
Max Breaker Size	35A
Min. Breaker Size	25A
Tonnage	2 Ton
BTU/Tonnage	24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating	-22~75 F / -30~24 C
Min/Max Outdoor Temp for Cooling	-22~122 F / -30~50 C
Zone Compatibility	Single Zone
Operating Mode	Heating/Cooling
Certification	Energy Star, NEEP, UL AHRI
Height	31.89"
Width	37.24"
Depth	16.14"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal with 24K Ceiling Cassette Submittal with 24k Concealed Duct Submittal with 24K Floor Mount Submittal with 24k Wall Mount
Safety Information	Proposition 65 Warning

Air Handler Specifications:

SKU	ACiQ-24W-HH-MD
Weight	39.680000
Manufacturer	ACiQ
Product Features	Low Ambient Heating, WiFi
Cooling BTU	24000 BTU
Heating BTU	24000 BTU
Maximum CFM	611.18
Decibel Level (dBA)	44
Electric Heat	Heat Pump
Refrigerant	R454B
SEER	18-20
Liquid Line	3/8"
Suction Line	5/8"
Electrical	208/230V 1 Phase 60 Hz
BTU/Tonnage	24,000 BTU/2 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Length	46.85"
Height	14.59"
Depth	11.20"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal Remote Control Manual Installation & Owner's Manual Wi-Fi Manual Warranty Information
Safety Information	Proposition 65 Warning
