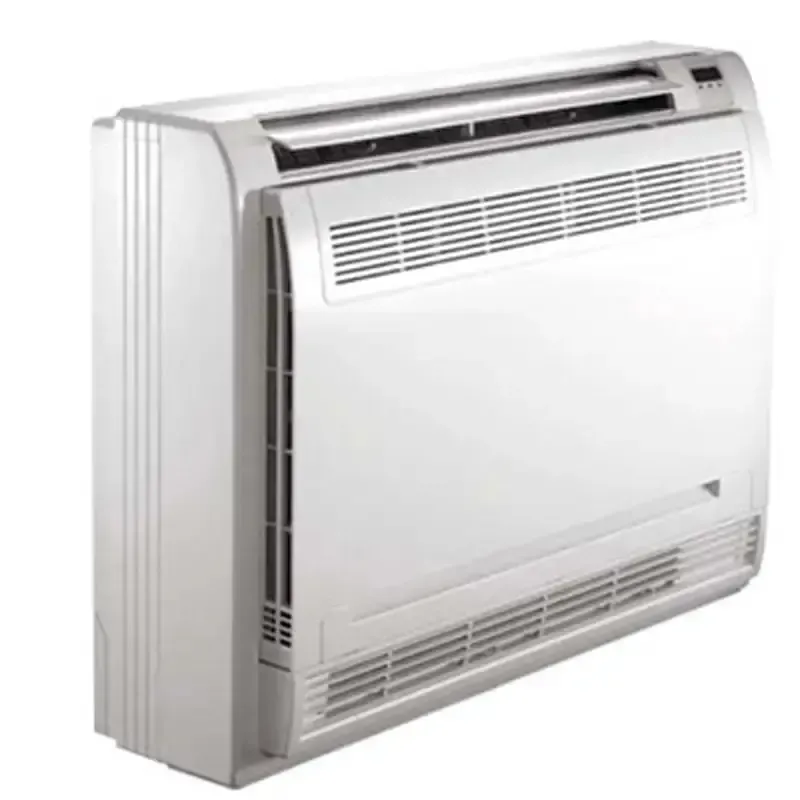

12,000 BTU Floor or Ceiling Mounted ACiQ Mini Split Air Handler

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Optimized for Heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

Features:

• 12,000 BTU of Heating or Cooling

• Dry and Fan modes also available

• Good for a small room in most climates

• Remote control thermostat included


Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

Air Handler Specifications:

Brand/Manufacturer	ACIQ
SKU	ACIQ-12FM-HH-MB
Weight (in lbs)	41.450000
Controller	Wireless Included
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	441
Decibel Level (dBA)	As low as 25
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	15
Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton
Mini-Split Type	Low Wall/Ceiling
Zone Compatibility	Multi Zone
Height	24.45"
Width	31.26"
Depth	7.87
Warranty	12 year compressor, 7 year parts with online registration
Resources	Floor Mounted Manual Submittal Brochure Warranty Information
Safety Information	Proposition 65 Warning
