12,000 BTU 23 SEER ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series

The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

• Maximum Performance at an Affordable Cost
• Heating & Cooling
• Ductless Solution perfect for 250-400 sq ft Room
• Efficient Cooling from -22°F - 122°F Outdoor Temperatures
• Efficient Heating from -22°F - 75°F Outdoor Temperatures
• Single Zone/Room Compatible

What's Included:

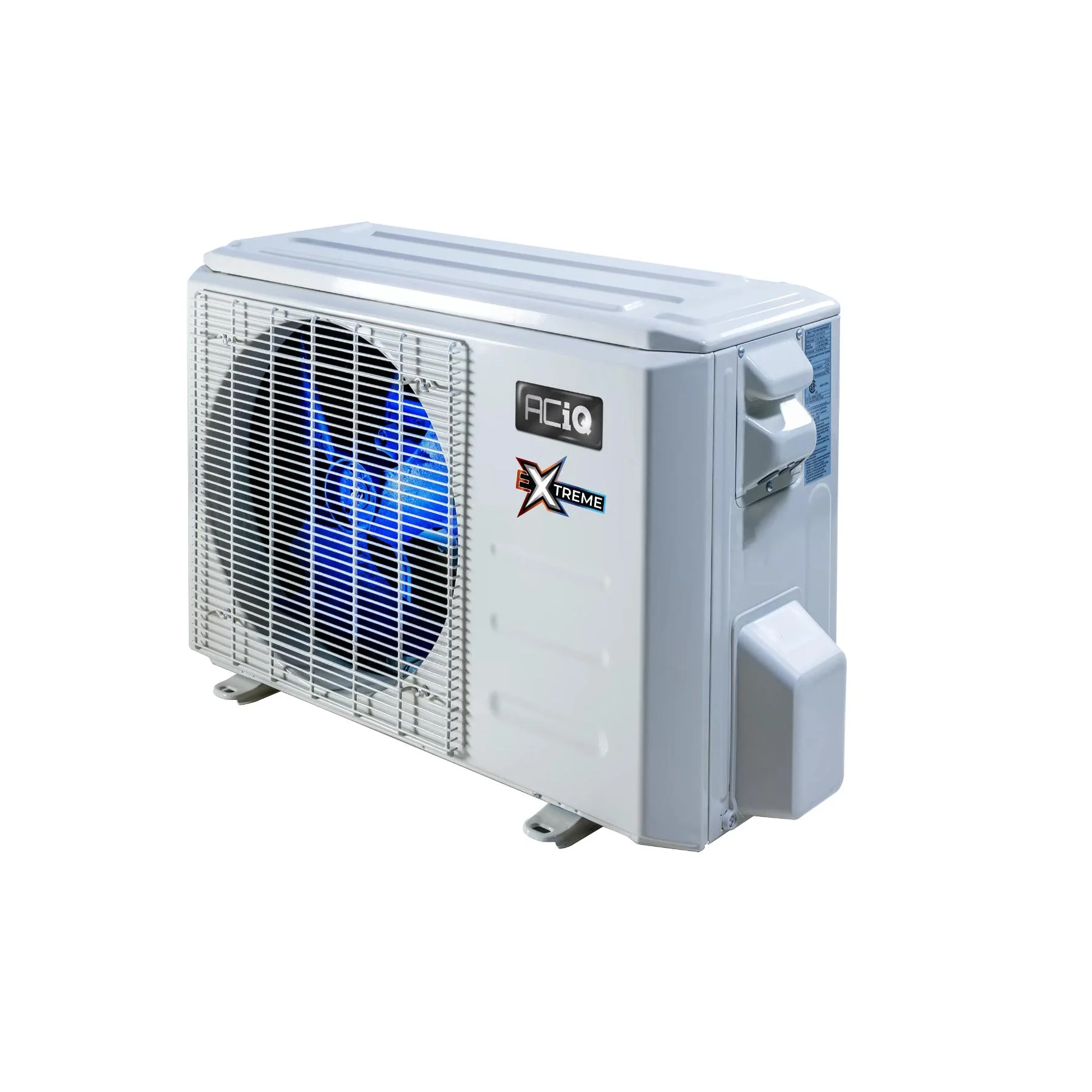

• 1x 12,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

• 1x 12,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B


Condenser Specifications:

SKU	ACIQ-12ZPL-HP230C
Weight	78.700000
AHRI Certificate Number	216032335
Manufacturer	ACiQ
Product Features	Low Ambient Heating
HSPF2	10.5
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	1470.6
Decibel Level (dBA)	56
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R454B
SEER2	25.5
Electrical	208/230V | 1 Phase | 60 Hz
Max Breaker Size	15
Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton
Min/Max Outdoor Temp for Heating	-22~75 F / -30~24 C
Min/Max Outdoor Temp for Cooling	-22~122 F / -30~50 C
Zone Compatibility	Single Zone
Certification	Energy Star, NEEP, UL AHRI
Height	21.81"
Width	31.69"
Depth	12.99"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal with 12K Ceiling Cassette Submittal with 12k Concealed Duct Submittal with 12K Floor Mount Submittal with 12k Slim Ceiling Cassette Submittal with 12k Wall Mount
Safety Information	PROPOSITION 65 WARNING

Air Handler Specifications:

SKU	ACIQ-12CC-HH-MC
Weight (in lbs)	41.890000
Manufacturer	ACiQ
Controller	Wireless Included
Product Features	WiFi
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	417.9
Decibel Level (dBA)	As low as 24.0
Electric Heat	Heat Pump
Refrigerant	R454B
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230V 1 Phase 60Hz
Electric Phase Filter	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini-Split Type	Ceiling Cassette
Zone Compatibility	Single Zone, Multi Zone
Height	9.65"
Width	22.44"
Depth	22.44"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal Installation Manual Owner's Manual Remote Manual Service Manual Warranty Information
Safety Information	PROPOSITION 65 WARNING
